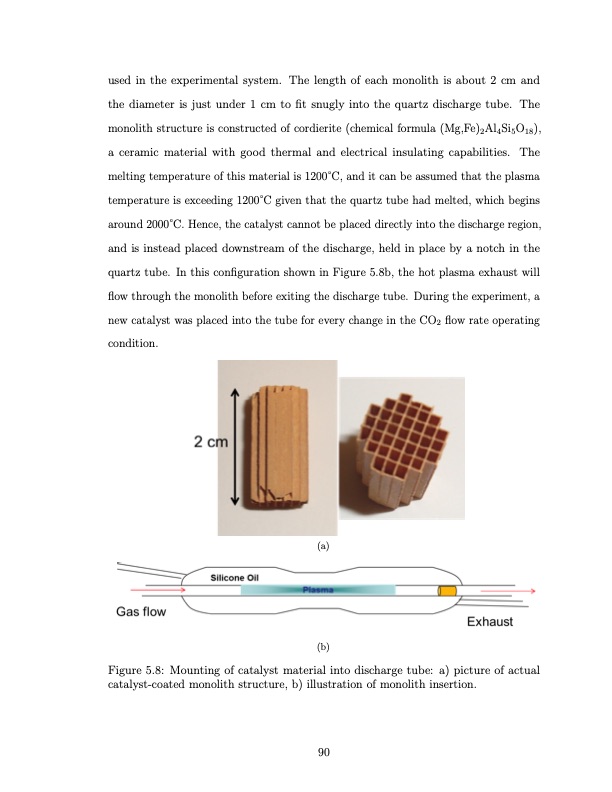

used in the experimental system. The length of each monolith is about 2 cm and the diameter is just under 1 cm to fit snugly into the quartz discharge tube. The monolith structure is constructed of cordierite (chemical formula (Mg,Fe)2Al4Si5O18), a ceramic material with good thermal and electrical insulating capabilities. The melting temperature of this material is 1200°C, and it can be assumed that the plasma temperature is exceeding 1200°C given that the quartz tube had melted, which begins around 2000°C. Hence, the catalyst cannot be placed directly into the discharge region, and is instead placed downstream of the discharge, held in place by a notch in the quartz tube. In this configuration shown in Figure 5.8b, the hot plasma exhaust will flow through the monolith before exiting the discharge tube. During the experiment, a new catalyst was placed into the tube for every change in the CO2 flow rate operating condition. (a) (b) Figure 5.8: Mounting of catalyst material into discharge tube: a) picture of actual catalyst-coated monolith structure, b) illustration of monolith insertion. 90PDF Image | CO2 Conversion in a Microwave Plasma Catalyst System
