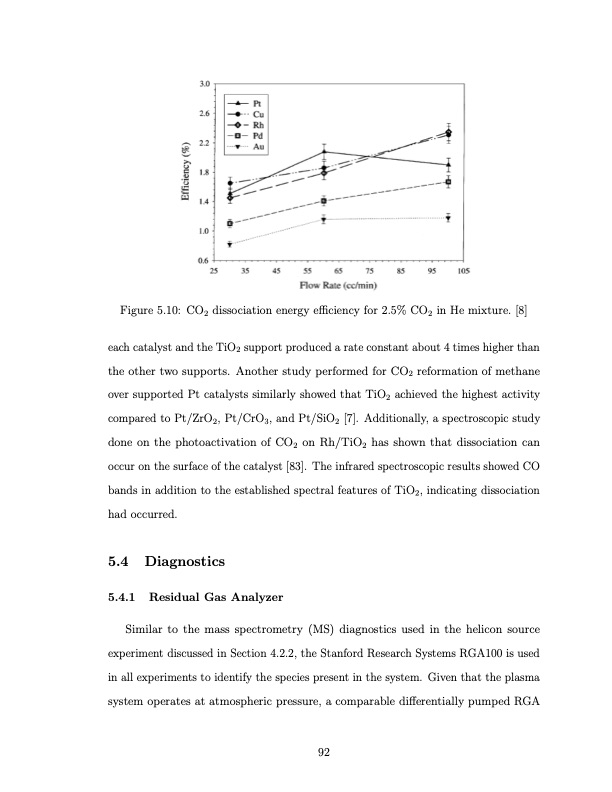

Figure 5.10: CO2 dissociation energy efficiency for 2.5% CO2 in He mixture. [8] each catalyst and the TiO2 support produced a rate constant about 4 times higher than the other two supports. Another study performed for CO2 reformation of methane over supported Pt catalysts similarly showed that TiO2 achieved the highest activity compared to Pt/ZrO2, Pt/CrO3, and Pt/SiO2 [7]. Additionally, a spectroscopic study done on the photoactivation of CO2 on Rh/TiO2 has shown that dissociation can occur on the surface of the catalyst [83]. The infrared spectroscopic results showed CO bands in addition to the established spectral features of TiO2, indicating dissociation had occurred. 5.4 Diagnostics 5.4.1 Residual Gas Analyzer Similar to the mass spectrometry (MS) diagnostics used in the helicon source experiment discussed in Section 4.2.2, the Stanford Research Systems RGA100 is used in all experiments to identify the species present in the system. Given that the plasma system operates at atmospheric pressure, a comparable differentially pumped RGA 92PDF Image | CO2 Conversion in a Microwave Plasma Catalyst System
