Text from PDF Page: 122

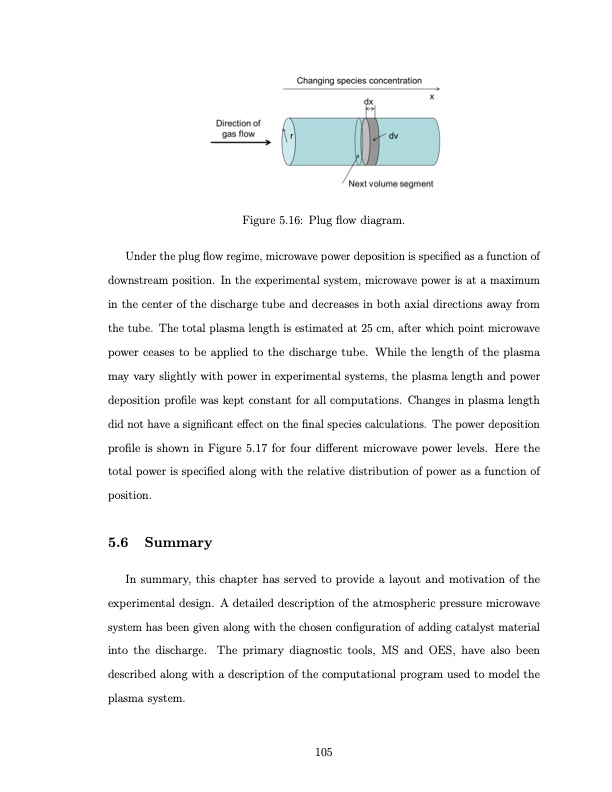

Figure 5.16: Plug flow diagram. Under the plug flow regime, microwave power deposition is specified as a function of downstream position. In the experimental system, microwave power is at a maximum in the center of the discharge tube and decreases in both axial directions away from the tube. The total plasma length is estimated at 25 cm, after which point microwave power ceases to be applied to the discharge tube. While the length of the plasma may vary slightly with power in experimental systems, the plasma length and power deposition profile was kept constant for all computations. Changes in plasma length did not have a significant effect on the final species calculations. The power deposition profile is shown in Figure 5.17 for four different microwave power levels. Here the total power is specified along with the relative distribution of power as a function of position. 5.6 Summary In summary, this chapter has served to provide a layout and motivation of the experimental design. A detailed description of the atmospheric pressure microwave system has been given along with the chosen configuration of adding catalyst material into the discharge. The primary diagnostic tools, MS and OES, have also been described along with a description of the computational program used to model the plasma system. 105PDF Image | CO2 Conversion in a Microwave Plasma Catalyst System
