Text from PDF Page: 034

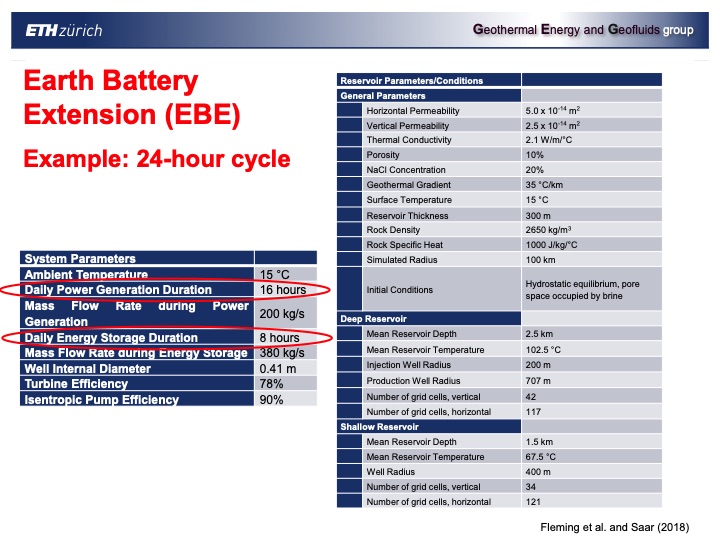

Earth Battery Extension (EBE) Example: 24-hour cycle Reservoir Parameters/Conditions General Parameters Horizontal Permeability 5.0 x 10-14 m2 Vertical Permeability 2.5 x 10-14 m2 Thermal Conductivity 2.1 W/m/°C Porosity 10% NaCl Concentration 20% Geothermal Gradient 35 °C/km Surface Temperature 15 °C Reservoir Thickness 300 m Rock Density 2650 kg/m3 Rock Specific Heat 1000 J/kg/°C Simulated Radius 100 km Initial Conditions Hydrostatic equilibrium, pore space occupied by brine Deep Reservoir Mean Reservoir Depth 2.5 km Mean Reservoir Temperature 102.5 °C Injection Well Radius 200 m Production Well Radius 707 m Number of grid cells, vertical 42 Number of grid cells, horizontal 117 Shallow Reservoir Mean Reservoir Depth 1.5 km Mean Reservoir Temperature 67.5 °C Well Radius 400 m Number of grid cells, vertical 34 Number of grid cells, horizontal 121 System Parameters Ambient Temperature 15 °C Daily Power Generation Duration 16 hours Mass Flow Rate during Power Generation 200 kg/s Daily Energy Storage Duration 8 hours Mass Flow Rate during Energy Storage 380 kg/s Well Internal Diameter 0.41 m Turbine Efficiency 78% Isentropic Pump Efficiency 90% Fleming et al. and Saar (2018) Geothermal Energy and Geofluids groupPDF Image | Combinging CO2 Capture and Geothermal Power Generation
