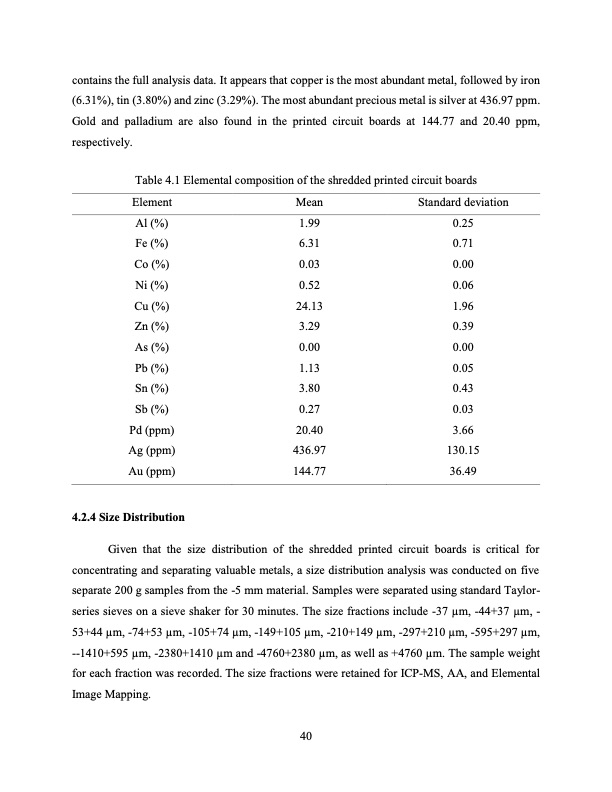

contains the full analysis data. It appears that copper is the most abundant metal, followed by iron (6.31%), tin (3.80%) and zinc (3.29%). The most abundant precious metal is silver at 436.97 ppm. Gold and palladium are also found in the printed circuit boards at 144.77 and 20.40 ppm, respectively. Table 4.1 Elemental composition of the shredded printed circuit boards Element Al (%) Fe (%) Co (%) Ni (%) Cu (%) Zn (%) As (%) Pb (%) Sn (%) Sb (%) Pd (ppm) Ag (ppm) Au (ppm) 4.2.4 Size Distribution Mean Standard deviation 1.99 0.25 6.31 0.71 0.03 0.00 0.52 0.06 24.13 1.96 3.29 0.39 0.00 0.00 1.13 0.05 3.80 0.43 0.27 0.03 20.40 3.66 436.97 130.15 144.77 36.49 Given that the size distribution of the shredded printed circuit boards is critical for concentrating and separating valuable metals, a size distribution analysis was conducted on five separate 200 g samples from the -5 mm material. Samples were separated using standard Taylor- series sieves on a sieve shaker for 30 minutes. The size fractions include -37 μm, -44+37 μm, - 53+44 μm, -74+53 μm, -105+74 μm, -149+105 μm, -210+149 μm, -297+210 μm, -595+297 μm, --1410+595 μm, -2380+1410 μm and -4760+2380 μm, as well as +4760 μm. The sample weight for each fraction was recorded. The size fractions were retained for ICP-MS, AA, and Elemental Image Mapping. 40PDF Image | HYDROMETALLURGICAL TREATMENT OF E-SCRAP
