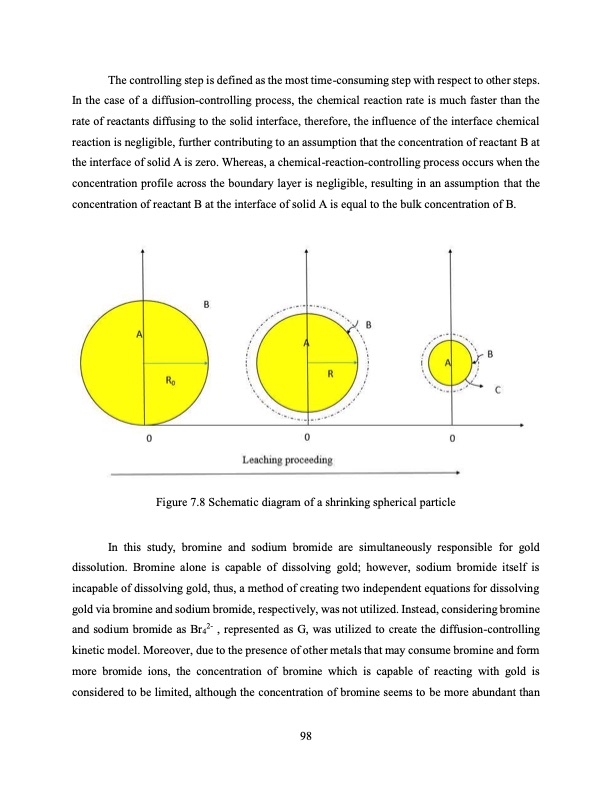

The controlling step is defined as the most time-consuming step with respect to other steps. In the case of a diffusion-controlling process, the chemical reaction rate is much faster than the rate of reactants diffusing to the solid interface, therefore, the influence of the interface chemical reaction is negligible, further contributing to an assumption that the concentration of reactant B at the interface of solid A is zero. Whereas, a chemical-reaction-controlling process occurs when the concentration profile across the boundary layer is negligible, resulting in an assumption that the concentration of reactant B at the interface of solid A is equal to the bulk concentration of B. Figure 7.8 Schematic diagram of a shrinking spherical particle In this study, bromine and sodium bromide are simultaneously responsible for gold dissolution. Bromine alone is capable of dissolving gold; however, sodium bromide itself is incapable of dissolving gold, thus, a method of creating two independent equations for dissolving gold via bromine and sodium bromide, respectively, was not utilized. Instead, considering bromine and sodium bromide as Br42- , represented as G, was utilized to create the diffusion-controlling kinetic model. Moreover, due to the presence of other metals that may consume bromine and form more bromide ions, the concentration of bromine which is capable of reacting with gold is considered to be limited, although the concentration of bromine seems to be more abundant than 98PDF Image | HYDROMETALLURGICAL TREATMENT OF E-SCRAP
