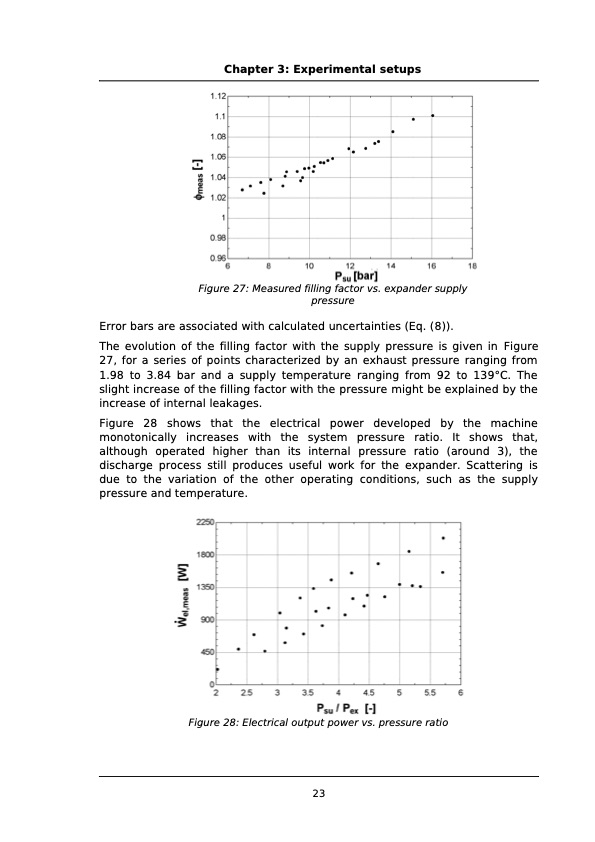

Chapter 3: Experimental setups Figure 27: Measured filling factor vs. expander supply pressure Error bars are associated with calculated uncertainties (Eq. (8)). The evolution of the filling factor with the supply pressure is given in Figure 27, for a series of points characterized by an exhaust pressure ranging from 1.98 to 3.84 bar and a supply temperature ranging from 92 to 139°C. The slight increase of the filling factor with the pressure might be explained by the increase of internal leakages. Figure 28 shows that the electrical power developed by the machine monotonically increases with the system pressure ratio. It shows that, although operated higher than its internal pressure ratio (around 3), the discharge process still produces useful work for the expander. Scattering is due to the variation of the other operating conditions, such as the supply pressure and temperature. Figure 28: Electrical output power vs. pressure ratio 23PDF Image | Organic Rankine Cycles for Waste Heat Recovery and Solar Uses
