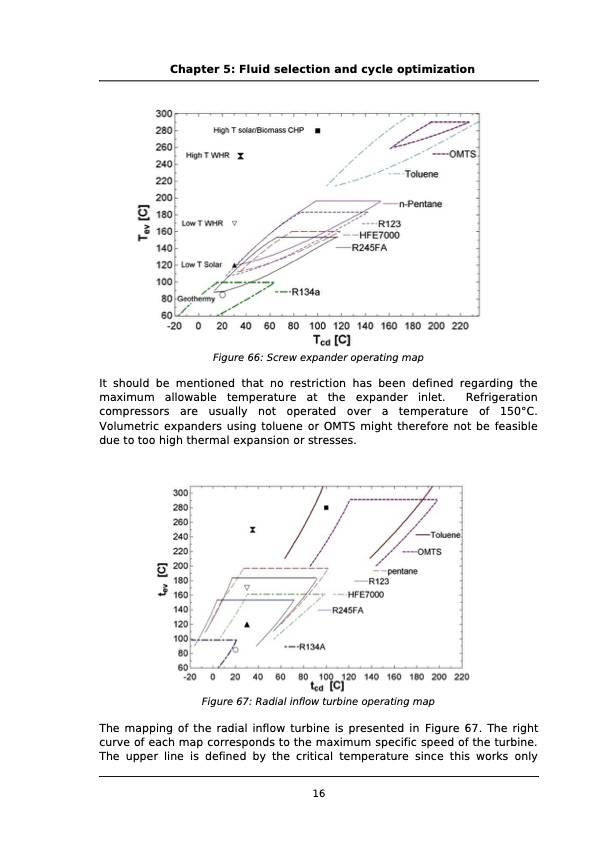

Chapter 5: Fluid selection and cycle optimization Figure 66: Screw expander operating map It should be mentioned that no restriction has been defined regarding the maximum allowable temperature at the expander inlet. Refrigeration compressors are usually not operated over a temperature of 150°C. Volumetric expanders using toluene or OMTS might therefore not be feasible due to too high thermal expansion or stresses. Figure 67: Radial inflow turbine operating map The mapping of the radial inflow turbine is presented in Figure 67. The right curve of each map corresponds to the maximum specific speed of the turbine. The upper line is defined by the critical temperature since this works only 16PDF Image | Organic Rankine Cycles for Waste Heat Recovery and Solar Uses
