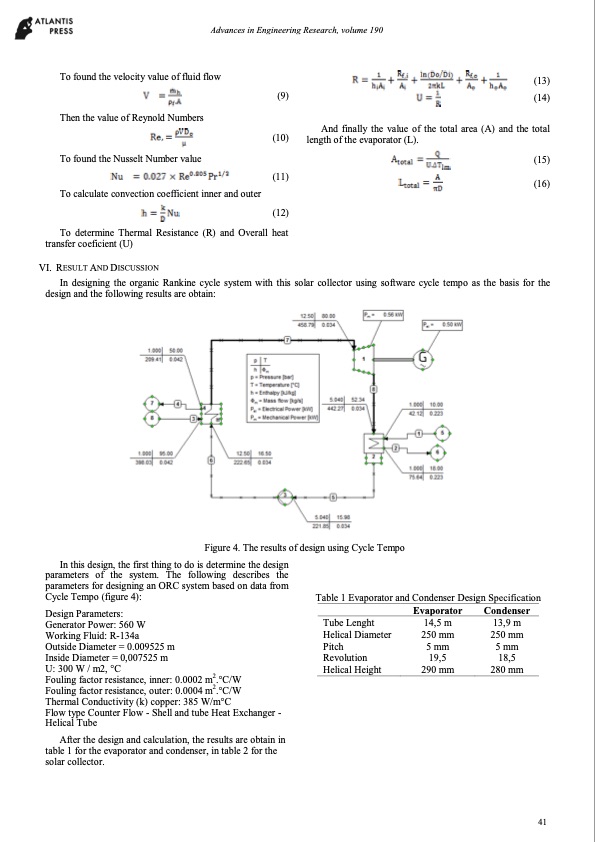

To found the velocity value of fluid flow Then the value of Reynold Numbers To found the Nusselt Number value (9) (10) (13) (14) Advances in Engineering Research, volume 190 And finally the value of the total area (A) and the total length of the evaporator (L). (11) To calculate convection coefficient inner and outer (12) To determine Thermal Resistance (R) and Overall heat transfer coeficient (U) VI. RESULT AND DISCUSSION (15) (16) In designing the organic Rankine cycle system with this solar collector using software cycle tempo as the basis for the design and the following results are obtain: Figure 4. The results of design using Cycle Tempo In this design, the first thing to do is determine the design parameters of the system. The following describes the parameters for designing an ORC system based on data from Cycle Tempo (figure 4): Design Parameters: Generator Power: 560 W Working Fluid: R-134a Outside Diameter = 0.009525 m Inside Diameter = 0,007525 m U: 300 W / m2, °C Fouling factor resistance, inner: 0.0002 m2.°C/W Fouling factor resistance, outer: 0.0004 m2.°C/W Thermal Conductivity (k) copper: 385 W/m°C Flow type Counter Flow - Shell and tube Heat Exchanger - Helical Tube After the design and calculation, the results are obtain in table 1 for the evaporator and condenser, in table 2 for the solar collector. Table 1 Evaporator and Condenser Design Specification Evaporator Condenser Tube Lenght Helical Diameter Pitch 5mm 5mm Revolution 19,5 18,5 Helical Height 290 mm 280 mm 14,5 m 250 mm 13,9 m 250 mm 41PDF Image | Solar R134A ORC organic rankine cycle
