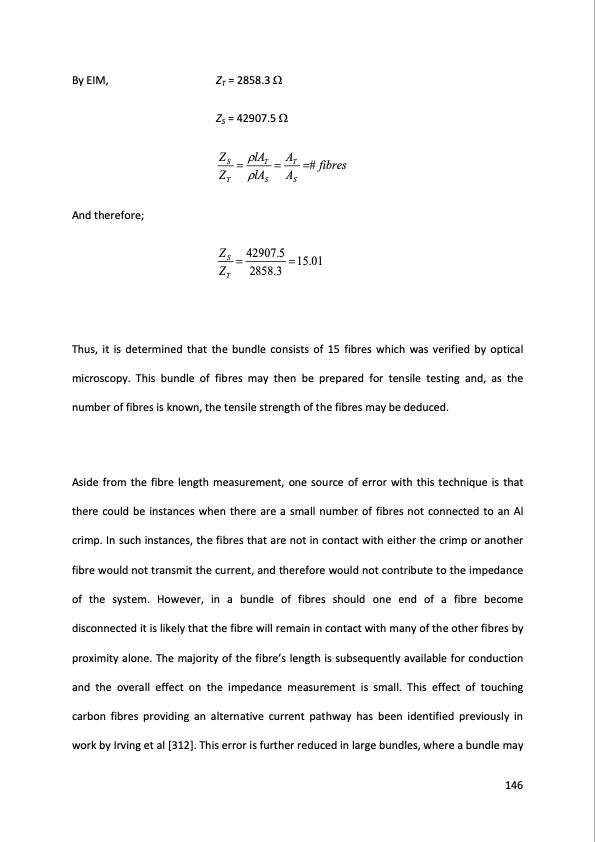

By EIM, And therefore; ZT = 2858.3 Ω ZS = 42907.5 Ω STT Z =ρlA =A =#fibres ZT ρlAS AS ZS = 42907.5 =15.01 ZT 2858.3 Thus, it is determined that the bundle consists of 15 fibres which was verified by optical microscopy. This bundle of fibres may then be prepared for tensile testing and, as the number of fibres is known, the tensile strength of the fibres may be deduced. Aside from the fibre length measurement, one source of error with this technique is that there could be instances when there are a small number of fibres not connected to an Al crimp. In such instances, the fibres that are not in contact with either the crimp or another fibre would not transmit the current, and therefore would not contribute to the impedance of the system. However, in a bundle of fibres should one end of a fibre become disconnected it is likely that the fibre will remain in contact with many of the other fibres by proximity alone. The majority of the fibre’s length is subsequently available for conduction and the overall effect on the impedance measurement is small. This effect of touching carbon fibres providing an alternative current pathway has been identified previously in work by Irving et al [312]. This error is further reduced in large bundles, where a bundle may 146PDF Image | Supercritical Fluids and Their Application to the Recycling of High-Performance Carbon Fibre Reinforced Composite Materials
