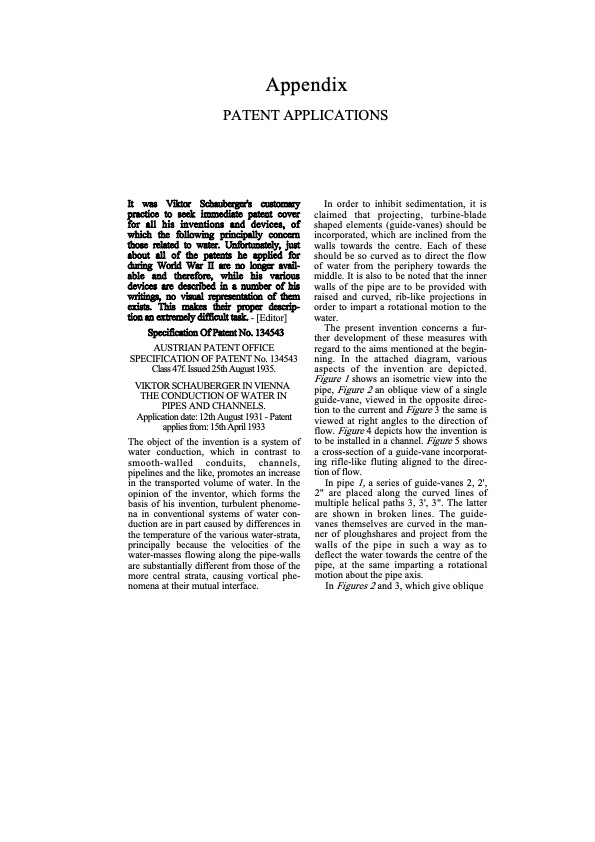

It was Viktor Schauberger's customary practice to seek immediate patent cover for all his inventions and devices, of which the following principally concern those related to water. Unfortunately, just about all of the patents he applied for during World War II are no longer avail- able and therefore, while his various devices are described in a number of his writings, no visual representation of them exists. This makes their proper descrip- tion an extremely difficult task. - [Editor] Specification Of Patent No. 134543 AUSTRIAN PATENT OFFICE SPECIFICATIONOFPATENTNo.134543 Class47f.Issued25thAugust1935. VIKTOR SCHAUBERGER IN VIENNA THE CONDUCTION OF WATER IN PIPES AND CHANNELS. Application date: 12th August 1931 - Patent applies from: 15th April 1933 The object of the invention is a system of water conduction, which in contrast to smooth-walled conduits, channels, pipelines and the like, promotes an increase in the transported volume of water. In the opinion of the inventor, which forms the basis of his invention, turbulent phenome- na in conventional systems of water con- duction are in part caused by differences in the temperature of the various water-strata, principally because the velocities of the water-masses flowing along the pipe-walls are substantially different from those of the more central strata, causing vortical phe- nomena at their mutual interface. In order to inhibit sedimentation, it is claimed that projecting, turbine-blade shaped elements (guide-vanes) should be incorporated, which are inclined from the walls towards the centre. Each of these should be so curved as to direct the flow of water from the periphery towards the middle. It is also to be noted that the inner walls of the pipe are to be provided with raised and curved, rib-like projections in order to impart a rotational motion to the water. The present invention concerns a fur- ther development of these measures with regard to the aims mentioned at the begin- ning. In the attached diagram, various aspects of the invention are depicted. Figure 1 shows an isometric view into the pipe, Figure 2 an oblique view of a single guide-vane, viewed in the opposite direc- tion to the current and Figure 3 the same is viewed at right angles to the direction of flow. Figure 4 depicts how the invention is to be installed in a channel. Figure 5 shows a cross-section of a guide-vane incorporat- ing rifle-like fluting aligned to the direc- tion of flow. In pipe 1, a series of guide-vanes 2, 2', 2" are placed along the curved lines of multiple helical paths 3, 3', 3". The latter are shown in broken lines. The guide- vanes themselves are curved in the man- ner of ploughshares and project from the walls of the pipe in such a way as to deflect the water towards the centre of the pipe, at the same imparting a rotational motion about the pipe axis. In Figures 2 and 3, which give oblique Appendix PATENT APPLICATIONSPDF Image | The Water Wizard
