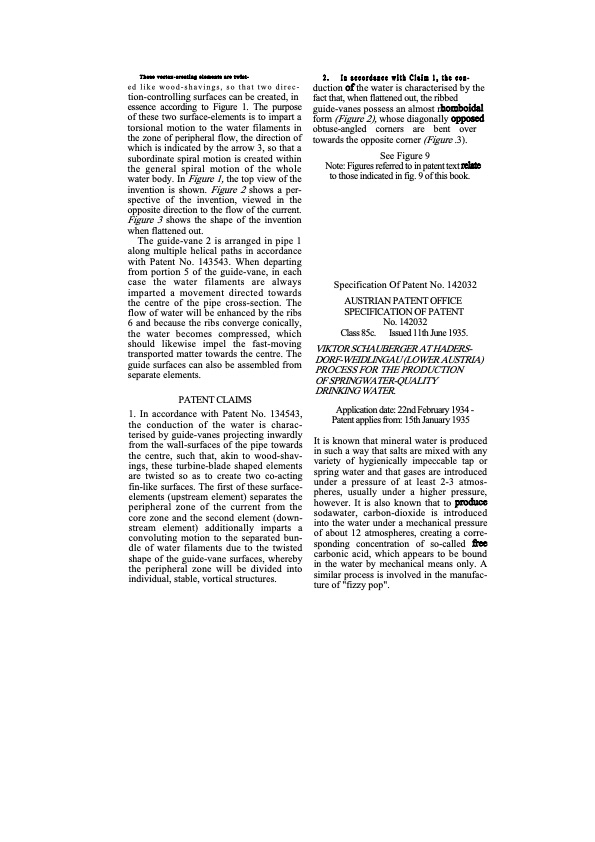

These vortex-creating elements are twist- ed like wood-shavings, so that two direc- tion-controlling surfaces can be created, in essence according to Figure 1. The purpose of these two surface-elements is to impart a torsional motion to the water filaments in the zone of peripheral flow, the direction of which is indicated by the arrow 3, so that a subordinate spiral motion is created within the general spiral motion of the whole water body. In Figure 1, the top view of the invention is shown. Figure 2 shows a per- spective of the invention, viewed in the opposite direction to the flow of the current. Figure 3 shows the shape of the invention when flattened out. The guide-vane 2 is arranged in pipe 1 along multiple helical paths in accordance with Patent No. 143543. When departing from portion 5 of the guide-vane, in each case the water filaments are always imparted a movement directed towards the centre of the pipe cross-section. The flow of water will be enhanced by the ribs 6 and because the ribs converge conically, the water becomes compressed, which should likewise impel the fast-moving transported matter towards the centre. The guide surfaces can also be assembled from separate elements. PATENT CLAIMS 1. In accordance with Patent No. 134543, the conduction of the water is charac- terised by guide-vanes projecting inwardly from the wall-surfaces of the pipe towards the centre, such that, akin to wood-shav- ings, these turbine-blade shaped elements are twisted so as to create two co-acting fin-like surfaces. The first of these surface- elements (upstream element) separates the peripheral zone of the current from the core zone and the second element (down- stream element) additionally imparts a convoluting motion to the separated bun- dle of water filaments due to the twisted shape of the guide-vane surfaces, whereby the peripheral zone will be divided into individual, stable, vortical structures. 2. In accordance with Claim 1, the con- duction of the water is characterised by the fact that, when flattened out, the ribbed guide-vanes possess an almost rhomboidal form (Figure 2), whose diagonally opposed obtuse-angled corners are bent over towards the opposite corner (Figure .3). See Figure 9 Note: Figures referred to in patent text relate to those indicated in fig. 9 of this book. Specification Of Patent No. 142032 AUSTRIAN PATENT OFFICE SPECIFICATION OF PATENT No. 142032 Class 85c. Issued 11th June 1935. VIKTOR SCHAUBERGER AT HADERS- DORF-WEIDLINGAU (LOWER AUSTRIA) PROCESS FOR THE PRODUCTION OF SPRINGWATER-QUALITY DRINKING WATER. Application date: 22nd February 1934 - Patent applies from: 15th January 1935 It is known that mineral water is produced in such a way that salts are mixed with any variety of hygienically impeccable tap or spring water and that gases are introduced under a pressure of at least 2-3 atmos- pheres, usually under a higher pressure, however. It is also known that to produce sodawater, carbon-dioxide is introduced into the water under a mechanical pressure of about 12 atmospheres, creating a corre- sponding concentration of so-called free carbonic acid, which appears to be bound in the water by mechanical means only. A similar process is involved in the manufac- ture of "fizzy pop".PDF Image | The Water Wizard
