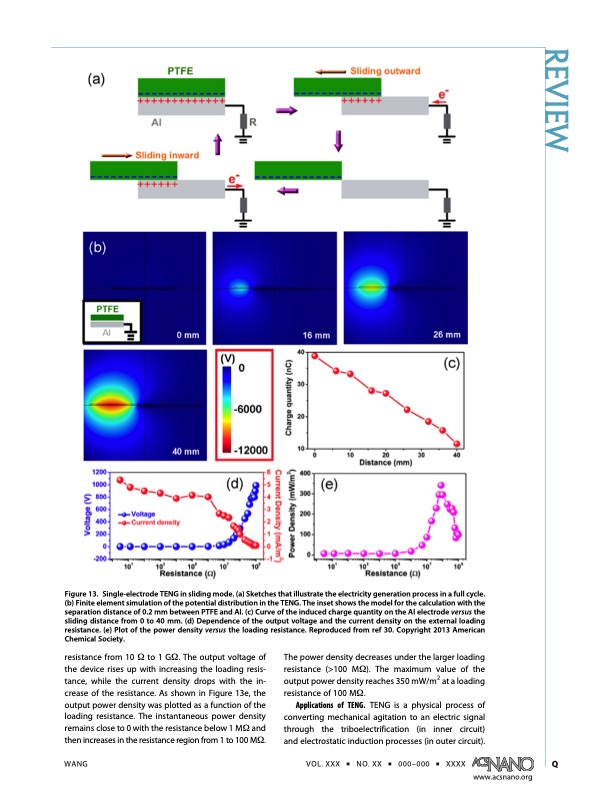

Figure13. Single-electrodeTENGinslidingmode.(a)Sketchesthatillustratetheelectricitygenerationprocessinafullcycle. (b) Finite element simulation of the potential distribution in the TENG. The inset shows the model for the calculation with the separation distance of 0.2 mm between PTFE and Al. (c) Curve of the induced charge quantity on the Al electrode versus the sliding distance from 0 to 40 mm. (d) Dependence of the output voltage and the current density on the external loading resistance. (e) Plot of the power density versus the loading resistance. Reproduced from ref 30. Copyright 2013 American Chemical Society. resistance from 10 Ω to 1 GΩ. The output voltage of the device rises up with increasing the loading resis- tance, while the current density drops with the in- crease of the resistance. As shown in Figure 13e, the output power density was plotted as a function of the loading resistance. The instantaneous power density remains close to 0 with the resistance below 1 MΩ and then increases in the resistance region from 1 to 100 MΩ. The power density decreases under the larger loading resistance (>100 MΩ). The maximum value of the output power density reaches 350 mW/m2 at a loading resistance of 100 MΩ. Applications of TENG. TENG is a physical process of converting mechanical agitation to an electric signal through the triboelectrification (in inner circuit) and electrostatic induction processes (in outer circuit). WANG VOL. XXX ’ NO. XX ’ 000–000 ’ XXXX Q www.acsnano.org REVIEWPDF Image | Triboelectric Nanogenerators as New Energy Technology
