PDF Publication Title:
Text from PDF Page: 066

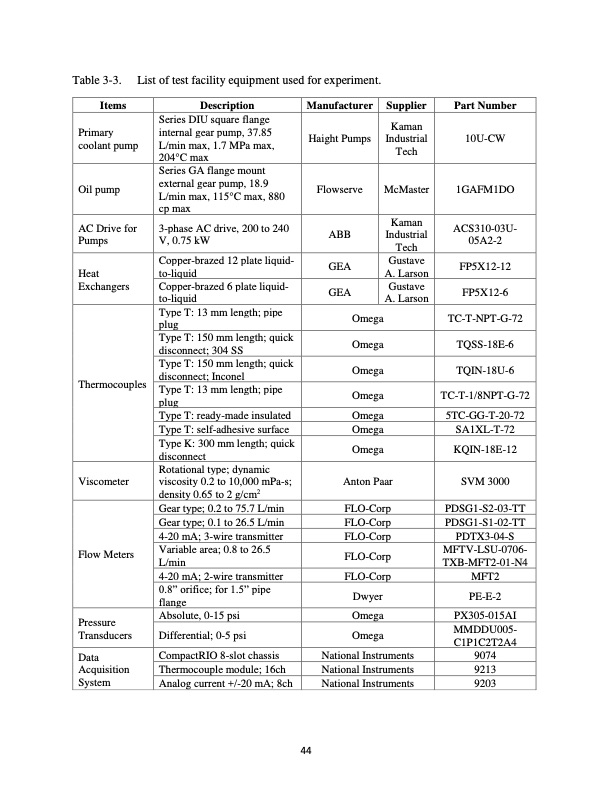

Table 3-3. List of test facility equipment used for experiment. Items Description Manufacturer Supplier Part Number Primary coolant pump Series DIU square flange internal gear pump, 37.85 L/min max, 1.7 MPa max, 204°C max Haight Pumps Kaman Industrial 10U-CW Tech Oil pump Series GA flange mount external gear pump, 18.9 L/min max, 115°C max, 880 cp max Flowserve McMaster 1GAFM1DO AC Drive for Pumps 3-phase AC drive, 200 to 240 V, 0.75 kW ABB Copper-brazed 6 plate liquid- to-liquid GEA Kaman Industrial Tech ACS310-03U- 05A2-2 Heat Exchangers Copper-brazed 12 plate liquid- to-liquid GEA Gustave A. Larson FP5X12-12 Gustave A. Larson FP5X12-6 Thermocouples Type T: 13 mm length; pipe plug Omega TC-T-NPT-G-72 Type T: 150 mm length; quick disconnect; 304 SS Omega TQSS-18E-6 Type T: 150 mm length; quick disconnect; Inconel Omega TQIN-18U-6 Type T: 13 mm length; pipe plug Omega TC-T-1/8NPT-G-72 Type T: ready-made insulated Omega 5TC-GG-T-20-72 Type T: self-adhesive surface Omega SA1XL-T-72 Type K: 300 mm length; quick disconnect Omega KQIN-18E-12 Viscometer Rotational type; dynamic viscosity 0.2 to 10,000 mPa-s; Anton Paar SVM 3000 density 0.65 to 2 g/cm2 Gear type; 0.2 to 75.7 L/min FLO-Corp PDSG1-S2-03-TT Flow Meters Gear type; 0.1 to 26.5 L/min FLO-Corp PDSG1-S1-02-TT 4-20 mA; 3-wire transmitter FLO-Corp PDTX3-04-S Variable area; 0.8 to 26.5 FLO-Corp MFTV-LSU-0706- L/min TXB-MFT2-01-N4 4-20 mA; 2-wire transmitter FLO-Corp MFT2 0.8” orifice; for 1.5” pipe flange Dwyer PE-E-2 Pressure Transducers Absolute, 0-15 psi Omega PX305-015AI Data Acquisition System Differential; 0-5 psi Omega MMDDU005- C1P1C2T2A4 CompactRIO 8-slot chassis National Instruments 9074 Thermocouple module; 16ch National Instruments 9213 Analog current +/-20 mA; 8ch National Instruments 9203 44PDF Image | WASTE HEAT RECOVERY FROM A HIGH TEMPERATURE DIESEL ENGINE
PDF Search Title:
WASTE HEAT RECOVERY FROM A HIGH TEMPERATURE DIESEL ENGINEOriginal File Name Searched:
Adler_colostate_0053N_14539.pdfDIY PDF Search: Google It | Yahoo | Bing
