Text from PDF Page: 202

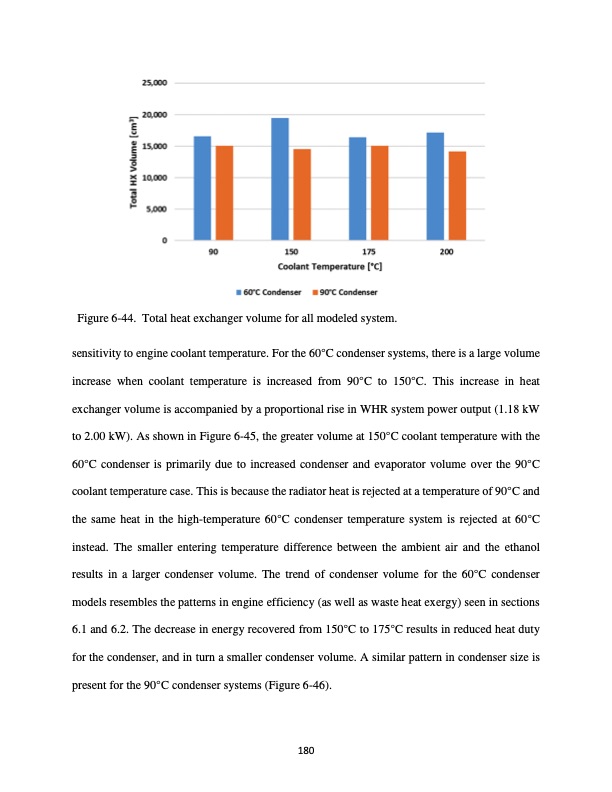

Figure 6-44. Total heat exchanger volume for all modeled system. sensitivity to engine coolant temperature. For the 60°C condenser systems, there is a large volume increase when coolant temperature is increased from 90°C to 150°C. This increase in heat exchanger volume is accompanied by a proportional rise in WHR system power output (1.18 kW to 2.00 kW). As shown in Figure 6-45, the greater volume at 150°C coolant temperature with the 60°C condenser is primarily due to increased condenser and evaporator volume over the 90°C coolant temperature case. This is because the radiator heat is rejected at a temperature of 90°C and the same heat in the high-temperature 60°C condenser temperature system is rejected at 60°C instead. The smaller entering temperature difference between the ambient air and the ethanol results in a larger condenser volume. The trend of condenser volume for the 60°C condenser models resembles the patterns in engine efficiency (as well as waste heat exergy) seen in sections 6.1 and 6.2. The decrease in energy recovered from 150°C to 175°C results in reduced heat duty for the condenser, and in turn a smaller condenser volume. A similar pattern in condenser size is present for the 90°C condenser systems (Figure 6-46). 180PDF Image | WASTE HEAT RECOVERY FROM A HIGH TEMPERATURE DIESEL ENGINE
