Text from PDF Page: 006

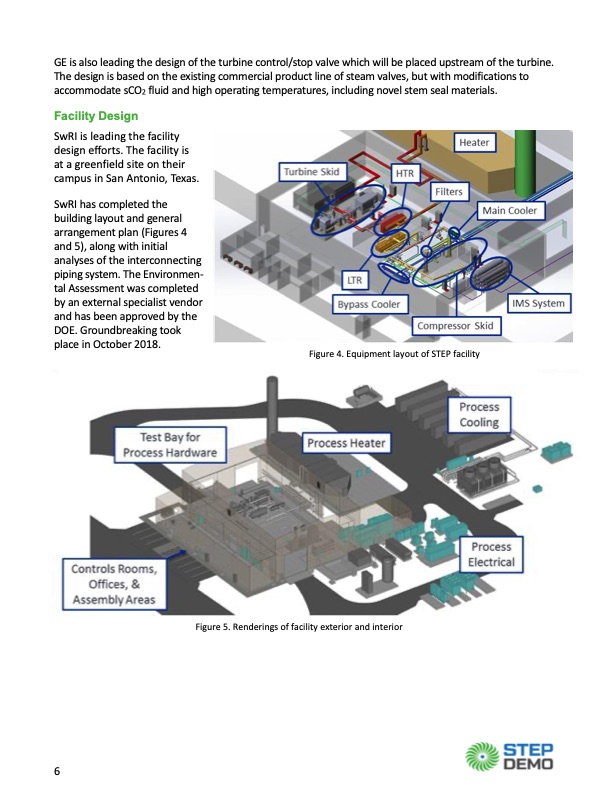

GE is also leading the design of the turbine control/stop valve which will be placed upstream of the turbine. The design is based on the existing commercial product line of steam valves, but with modifications to accommodate sCO2 fluid and high operating temperatures, including novel stem seal materials. Facility Design SwRI is leading the facility design efforts. The facility is at a greenfield site on their campus in San Antonio, Texas. SwRI has completed the building layout and general arrangement plan (Figures 4 and 5), along with initial analyses of the interconnecting piping system. The Environmen- tal Assessment was completed by an external specialist vendor and has been approved by the DOE. Groundbreaking took place in October 2018. Figure 4. Equipment layout of STEP facility Figure 5. Renderings of facility exterior and interior 6PDF Image | 10 MWe Supercritical Carbon Dioxide sCO2 Pilot Power Plant
