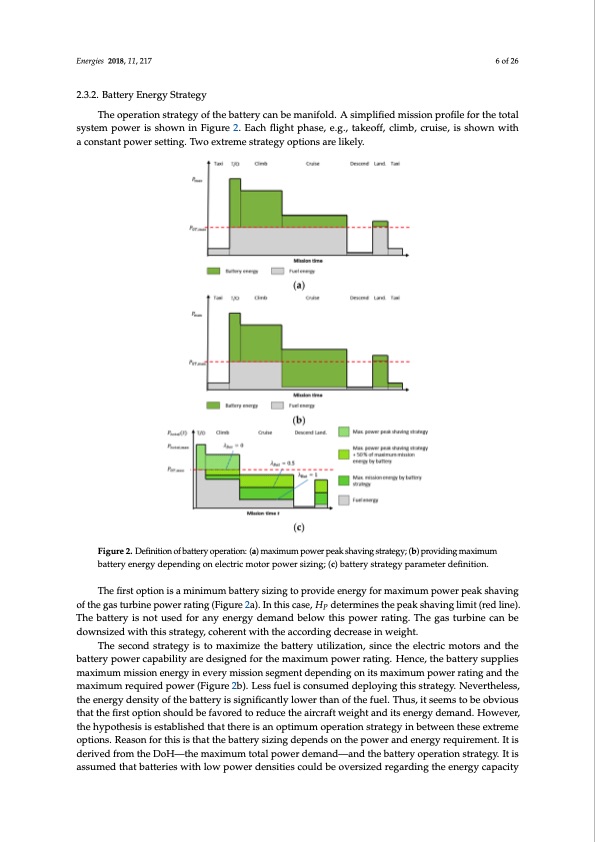

Energies 2018, 11, 217 6 of 26 2.3.2. Battery Energy Strategy The operation strategy of the battery can be manifold. A simplified mission profile for the total system power is shown in Figure 2. Each flight phase, e.g., takeoff, climb, cruise, is shown with a constant power setting. Two extreme strategy options are likely. Figure 2. Definition of battery operation: (a) maximum power peak shaving strategy; (b) providing maximum battery energy depending on electric motor power sizing; (c) battery strategy parameter definition. The first option is a minimum battery sizing to provide energy for maximum power peak shaving of the gas turbine power rating (Figure 2a). In this case, HP determines the peak shaving limit (red line). The battery is not used for any energy demand below this power rating. The gas turbine can be downsized with this strategy, coherent with the according decrease in weight. The second strategy is to maximize the battery utilization, since the electric motors and the battery power capability are designed for the maximum power rating. Hence, the battery supplies maximum mission energy in every mission segment depending on its maximum power rating and the maximum required power (Figure 2b). Less fuel is consumed deploying this strategy. Nevertheless, the energy density of the battery is significantly lower than of the fuel. Thus, it seems to be obvious that the first option should be favored to reduce the aircraft weight and its energy demand. However, the hypothesis is established that there is an optimum operation strategy in between these extreme options. Reason for this is that the battery sizing depends on the power and energy requirement. It is derived from the DoH—the maximum total power demand—and the battery operation strategy. It is assumed that batteries with low power densities could be oversized regarding the energy capacityPDF Image | Design of Operation Strategies for Hybrid Electric Aircraft
