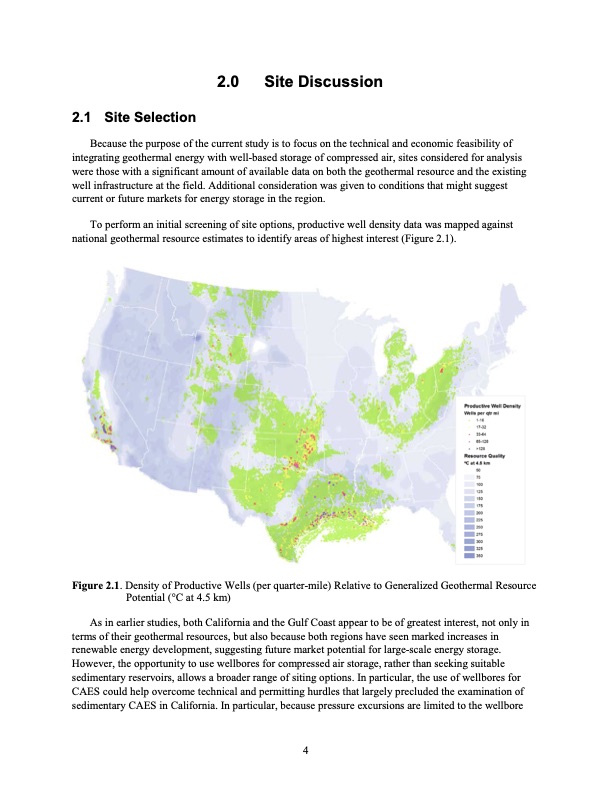

2.1 Site Selection 2.0 Site Discussion Because the purpose of the current study is to focus on the technical and economic feasibility of integrating geothermal energy with well-based storage of compressed air, sites considered for analysis were those with a significant amount of available data on both the geothermal resource and the existing well infrastructure at the field. Additional consideration was given to conditions that might suggest current or future markets for energy storage in the region. To perform an initial screening of site options, productive well density data was mapped against national geothermal resource estimates to identify areas of highest interest (Figure 2.1). Figure 2.1. Density of Productive Wells (per quarter-mile) Relative to Generalized Geothermal Resource Potential (°C at 4.5 km) As in earlier studies, both California and the Gulf Coast appear to be of greatest interest, not only in terms of their geothermal resources, but also because both regions have seen marked increases in renewable energy development, suggesting future market potential for large-scale energy storage. However, the opportunity to use wellbores for compressed air storage, rather than seeking suitable sedimentary reservoirs, allows a broader range of siting options. In particular, the use of wellbores for CAES could help overcome technical and permitting hurdles that largely precluded the examination of sedimentary CAES in California. In particular, because pressure excursions are limited to the wellbore 4PDF Image | Geothermally Well Based Compressed Air Energy Storage
