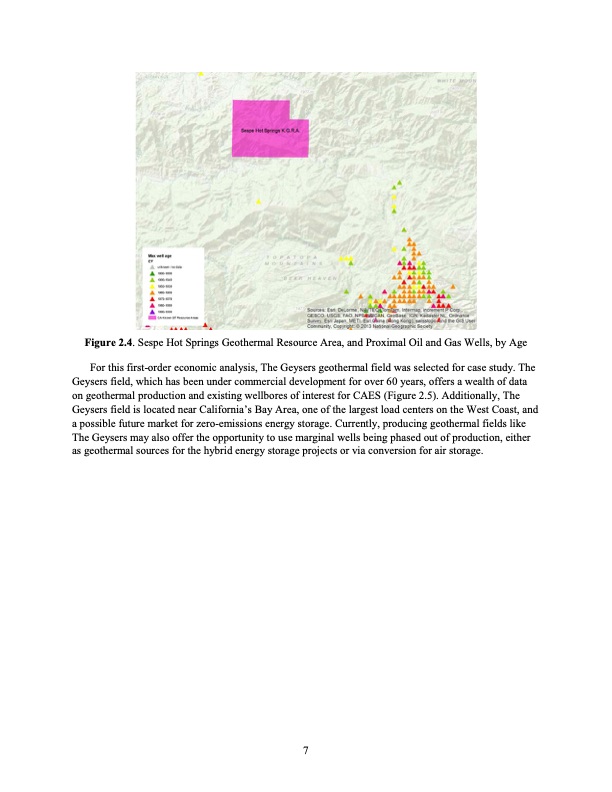

Figure 2.4. Sespe Hot Springs Geothermal Resource Area, and Proximal Oil and Gas Wells, by Age For this first-order economic analysis, The Geysers geothermal field was selected for case study. The Geysers field, which has been under commercial development for over 60 years, offers a wealth of data on geothermal production and existing wellbores of interest for CAES (Figure 2.5). Additionally, The Geysers field is located near California’s Bay Area, one of the largest load centers on the West Coast, and a possible future market for zero-emissions energy storage. Currently, producing geothermal fields like The Geysers may also offer the opportunity to use marginal wells being phased out of production, either as geothermal sources for the hybrid energy storage projects or via conversion for air storage. 7PDF Image | Geothermally Well Based Compressed Air Energy Storage
