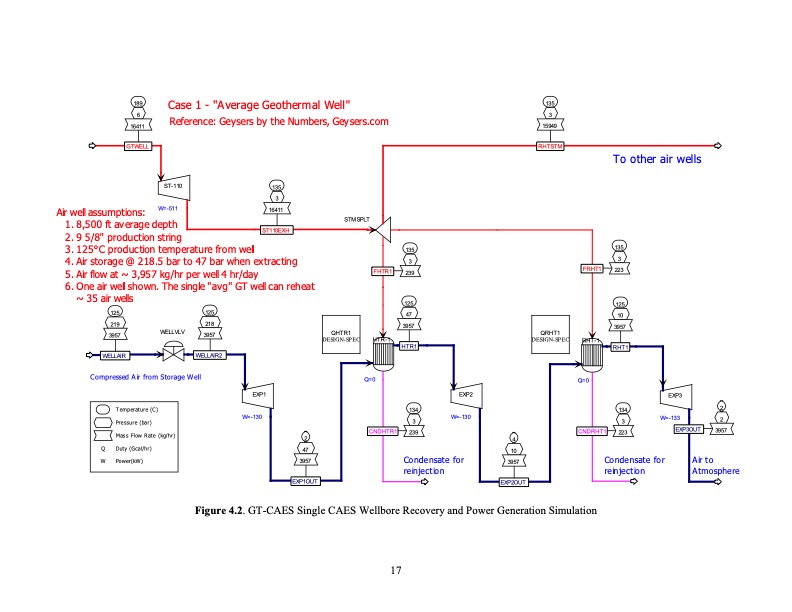

189 6 16411 GTWELL Case 1 - "Average Geothermal Well" Reference: Geysers by the Numbers, Geysers.com 135 3 15949 RHTSTM ST-110 W=-511 135 3 16411 ST110EXH To other air wells 135 3 FRHT1 223 125 10 3957 RHT1 134 3 Air well assumptions: 1. 8,500 ft average depth 2. 9 5/8" production string 3. 125°C production temperature from wel 4. Air storage @ 218.5 bar to 47 bar when extracting 5. Air flow at ~ 3,957 kg/hr per well 4 hr/day 6. One air wel shown. The single "avg" GT well can reheat ~ 35 air wells STM SPLT 125 125 219 218 3957 WELLVLV 3957 WELLAIR WELLAIR2 Compressed Air from Storage Well QHTR1 DESIGN-SPEC FHTR1 HTR-1 Q=0 CNDHTR1 135 3 239 125 47 3957 HTR1 134 3 239 QRHT1 DESIGN-SPEC RHT-1 Q=0 EXP1 W=-130 EXP2 W=-130 EXP3 Temperature (C) Pressure (bar) Mass Flow Rate (kg/hr) Q Duty (Gcal/hr) W Power(kW) W=-133 2 2 EXP3OUT 3957 Air to Atmosphere 24 CNDRHT1 223 Condensate for 47 3957 EXP1OUT Condensate for reinjection 10 3957 EXP2OUT reinjection Figure 4.2. GT-CAES Single CAES Wellbore Recovery and Power Generation Simulation 17PDF Image | Geothermally Well Based Compressed Air Energy Storage
