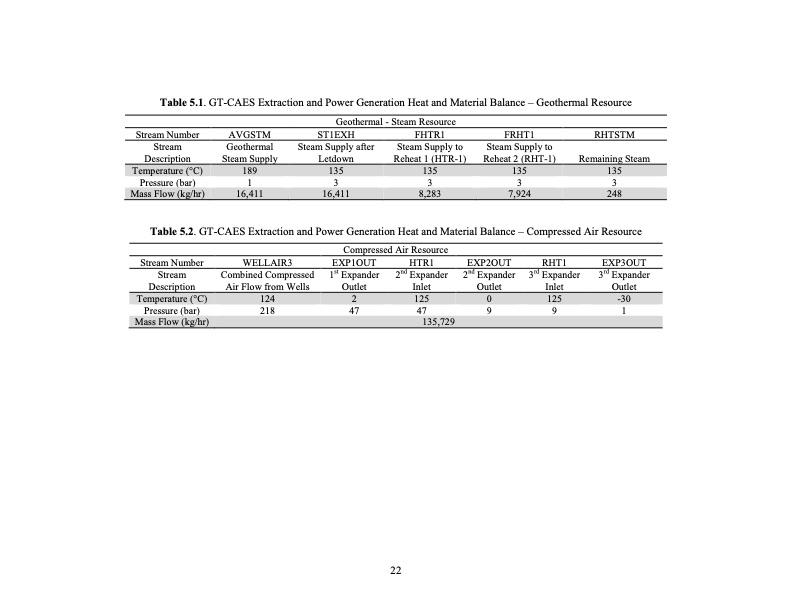

Table 5.1. GT-CAES Extraction and Power Generation Heat and Material Balance – Geothermal Resource Stream Number Stream Description Temperature (°C) Pressure (bar) Mass Flow (kg/hr) AVGSTM Geothermal Steam Supply 189 1 16,411 Geothermal - Steam Resource ST1EXH Steam Supply after Letdown 135 3 16,411 FHTR1 Steam Supply to Reheat 1 (HTR-1) 135 3 8,283 FRHT1 Steam Supply to Reheat 2 (RHT-1) 135 3 7,924 RHTSTM Remaining Steam 135 3 248 Table 5.2. GT-CAES Extraction and Power Generation Heat and Material Balance – Compressed Air Resource Stream Number Stream Description Temperature (°C) Pressure (bar) Mass Flow (kg/hr) WELLAIR3 Combined Compressed Air Flow from Wells 124 218 Compressed Air Resource EXP1OUT 1st Expander Outlet 2 47 HTR1 2nd Expander Inlet 125 47 135,729 EXP2OUT 2nd Expander Outlet 0 9 RHT1 3rd Expander Inlet 125 9 EXP3OUT 3rd Expander Outlet -30 1 22PDF Image | Geothermally Well Based Compressed Air Energy Storage
