PDF Publication Title:
Text from PDF Page: 038

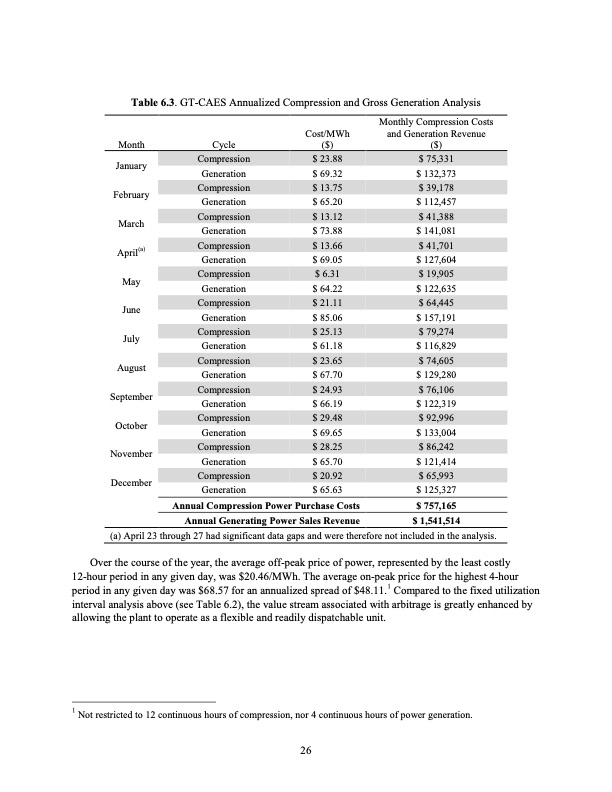

Table 6.3. GT-CAES Annualized Compression and Gross Generation Analysis Month January February March April(a) May June July August September October November December Cycle Compression Generation Compression Generation Compression Generation Compression Generation Compression Generation Compression Generation Compression Generation Compression Generation Compression Generation Compression Generation Compression Generation Compression Generation Cost/MWh ($) $ 23.88 $ 69.32 $ 13.75 $ 65.20 $ 13.12 $ 73.88 $ 13.66 $ 69.05 $ 6.31 $ 64.22 $ 21.11 $ 85.06 $ 25.13 $ 61.18 $ 23.65 $ 67.70 $ 24.93 $ 66.19 $ 29.48 $ 69.65 $ 28.25 $ 65.70 $ 20.92 $ 65.63 Monthly Compression Costs and Generation Revenue ($) $ 75,331 $ 132,373 $ 39,178 $ 112,457 $ 41,388 $ 141,081 $ 41,701 $ 127,604 $ 19,905 $ 122,635 $ 64,445 $ 157,191 $ 79,274 $ 116,829 $ 74,605 $ 129,280 $ 76,106 $ 122,319 $ 92,996 $ 133,004 $ 86,242 $ 121,414 $ 65,993 $ 125,327 $ 757,165 $ 1,541,514 Annual Compression Power Purchase Costs Annual Generating Power Sales Revenue (a) April 23 through 27 had significant data gaps and were therefore not included in the analysis. Over the course of the year, the average off-peak price of power, represented by the least costly 12-hour period in any given day, was $20.46/MWh. The average on-peak price for the highest 4-hour period in any given day was $68.57 for an annualized spread of $48.11.1 Compared to the fixed utilization interval analysis above (see Table 6.2), the value stream associated with arbitrage is greatly enhanced by allowing the plant to operate as a flexible and readily dispatchable unit. 1 Not restricted to 12 continuous hours of compression, nor 4 continuous hours of power generation. 26PDF Image | Geothermally Well Based Compressed Air Energy Storage
PDF Search Title:
Geothermally Well Based Compressed Air Energy StorageOriginal File Name Searched:
PNNL-25171.pdfDIY PDF Search: Google It | Yahoo | Bing
