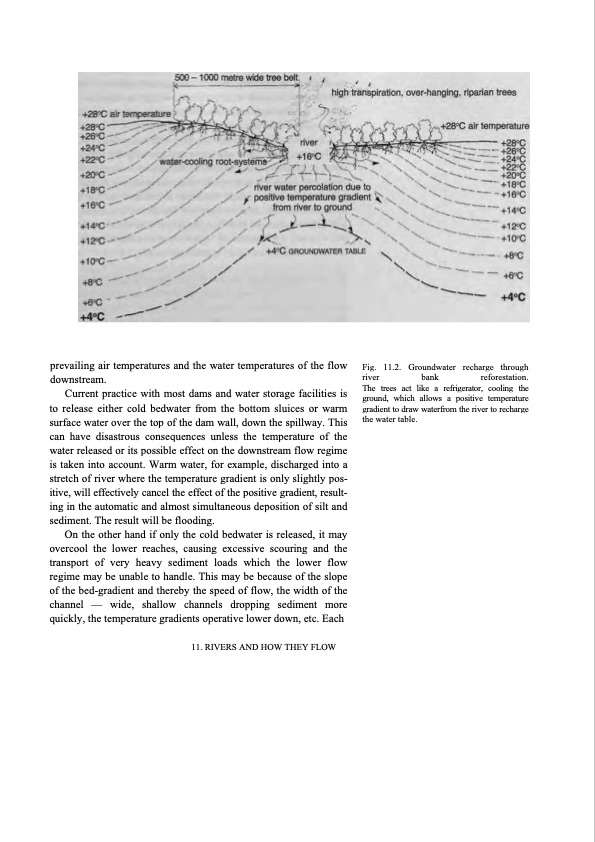

prevailing air temperatures and the water temperatures of the flow downstream. Current practice with most dams and water storage facilities is to release either cold bedwater from the bottom sluices or warm surface water over the top of the dam wall, down the spillway. This can have disastrous consequences unless the temperature of the water released or its possible effect on the downstream flow regime is taken into account. Warm water, for example, discharged into a stretch of river where the temperature gradient is only slightly pos- itive, will effectively cancel the effect of the positive gradient, result- ing in the automatic and almost simultaneous deposition of silt and sediment. The result will be flooding. On the other hand if only the cold bedwater is released, it may overcool the lower reaches, causing excessive scouring and the transport of very heavy sediment loads which the lower flow regime may be unable to handle. This may be because of the slope of the bed-gradient and thereby the speed of flow, the width of the channel — wide, shallow channels dropping sediment more quickly, the temperature gradients operative lower down, etc. Each 11. RIVERS AND HOW THEY FLOW Fig. 11.2. Groundwater recharge through river bank reforestation. The trees act like a refrigerator, cooling the ground, which allows a positive temperature gradient to draw waterfrom the river to recharge the water table.PDF Image | Hidden Nature Insights Viktor Schauberger
