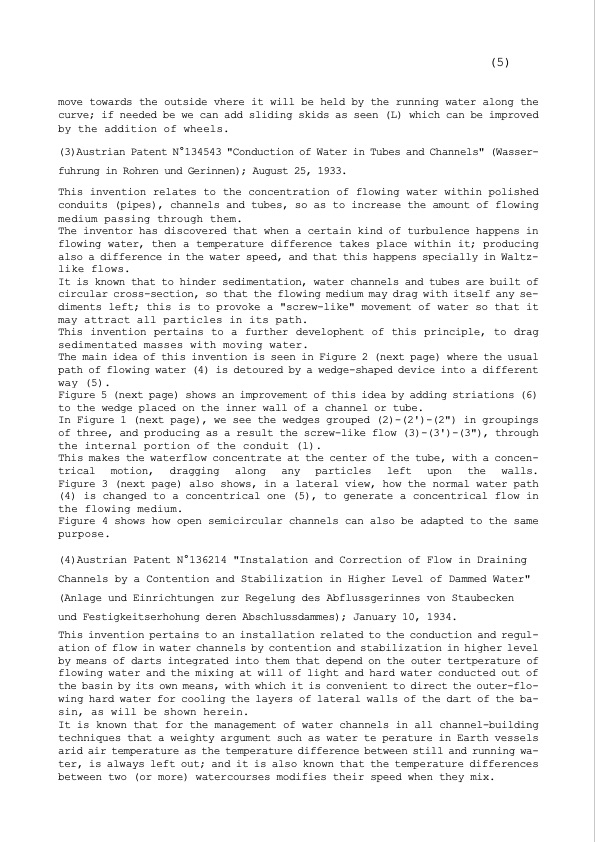

Text from PDF Page: 113
(5) move towards the outside vhere it will be held by the running water along the curve; if needed be we can add sliding skids as seen (L) which can be improved by the addition of wheels. (3)Austrian Patent N°134543 "Conduction of Water in Tubes and Channels" (Wasser- fuhrung in Rohren und Gerinnen); August 25, 1933. This invention relates to the concentration of flowing water within polished conduits (pipes), channels and tubes, so as to increase the amount of flowing medium passing through them. The inventor has discovered that when a certain kind of turbulence happens in flowing water, then a temperature difference takes place within it; producing also a difference in the water speed, and that this happens specially in Waltz- like flows. It is known that to hinder sedimentation, water channels and tubes are built of circular cross-section, so that the flowing medium may drag with itself any se- diments left; this is to provoke a "screw-like" movement of water so that it may attract all particles in its path. This invention pertains to a further develophent of this principle, to drag sedimentated masses with moving water. The main idea of this invention is seen in Figure 2 (next page) where the usual path of flowing water (4) is detoured by a wedge-shaped device into a different way (5). Figure 5 (next page) shows an improvement of this idea by adding striations (6) to the wedge placed on the inner wall of a channel or tube. In Figure 1 (next page), we see the wedges grouped (2)-(2')-(2") in groupings of three, and producing as a result the screw-like flow (3)-(3')-(3"), through the internal portion of the conduit (l). This makes the waterflow concentrate at the center of the tube, with a concen- trical motion, dragging along any particles left upon the walls. Figure 3 (next page) also shows, in a lateral view, how the normal water path (4) is changed to a concentrical one (5), to generate a concentrical flow in the flowing medium. Figure 4 shows how open semicircular channels can also be adapted to the same purpose. (4)Austrian Patent N°136214 "Instalation and Correction of Flow in Draining Channels by a Contention and Stabilization in Higher Level of Dammed Water" (Anlage und Einrichtungen zur Regelung des Abflussgerinnes von Staubecken und Festigkeitserhohung deren Abschlussdammes); January 10, 1934. This invention pertains to an installation related to the conduction and regul- ation of flow in water channels by contention and stabilization in higher level by means of darts integrated into them that depend on the outer tertperature of flowing water and the mixing at will of light and hard water conducted out of the basin by its own means, with which it is convenient to direct the outer-flo- wing hard water for cooling the layers of lateral walls of the dart of the ba- sin, as will be shown herein. It is known that for the management of water channels in all channel-building techniques that a weighty argument such as water te perature in Earth vessels arid air temperature as the temperature difference between still and running wa- ter, is always left out; and it is also known that the temperature differences between two (or more) watercourses modifies their speed when they mix.PDF Image | IMPLOSION by Viktor Schauberger
