Text from PDF Page: 123

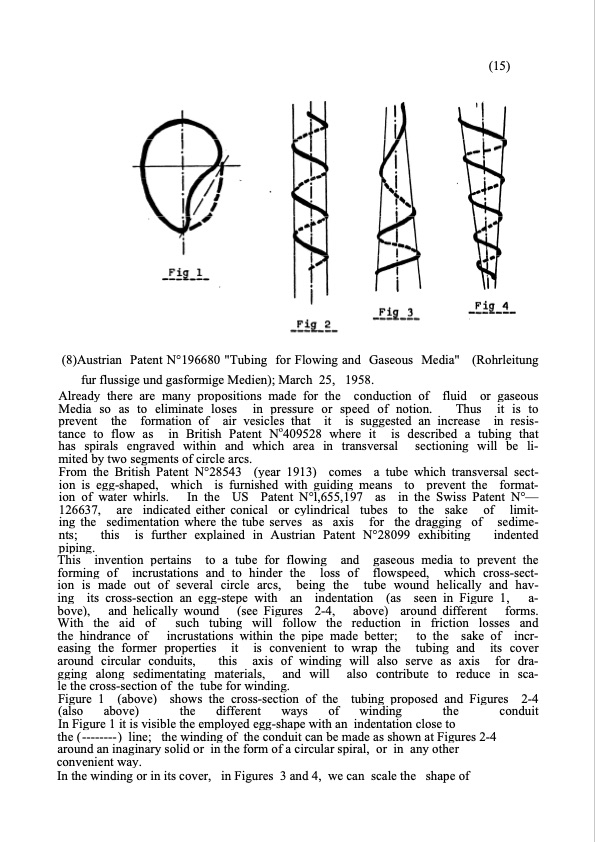

(15) (8)Austrian Patent N°196680 "Tubing for Flowing and Gaseous Media" (Rohrleitung fur flussige und gasformige Medien); March 25, 1958. Already there are many propositions made for the conduction of fluid or gaseous Media so as to eliminate loses in pressure or speed of notion. Thus it is to prevent the formation of air vesicles that it is suggested an increase in resis- tance to flow as in British Patent No409528 where it is described a tubing that has spirals engraved within and which area in transversal sectioning will be li- mited by two segments of circle arcs. From the British Patent N°28543 (year 1913) comes a tube which transversal sect- ion is egg-shaped, which is furnished with guiding means to prevent the format- ion of water whirls. In the US Patent N°l,655,197 as in the Swiss Patent N°— 126637, are indicated either conical or cylindrical tubes to the sake of limit- ing the sedimentation where the tube serves as axis for the dragging of sedime- nts; this is further explained in Austrian Patent N°28099 exhibiting indented piping. This invention pertains to a tube for flowing and gaseous media to prevent the forming of incrustations and to hinder the loss of flowspeed, which cross-sect- ion is made out of several circle arcs, being the tube wound helically and hav- ing its cross-section an egg-stepe with an indentation (as seen in Figure 1, a- bove), and helically wound (see Figures 2-4, above) around different forms. With the aid of such tubing will follow the reduction in friction losses and the hindrance of incrustations within the pipe made better; to the sake of incr- easing the former properties it is convenient to wrap the tubing and its cover around circular conduits, this axis of winding will also serve as axis for dra- gging along sedimentating materials, and will also contribute to reduce in sca- le the cross-section of the tube for winding. Figure 1 (above) shows the cross-section of the tubing proposed and Figures 2-4 (also above) the different ways of winding the conduit In Figure 1 it is visible the employed egg-shape with an indentation close to the (--------) line; the winding of the conduit can be made as shown at Figures 2-4 around an inaginary solid or in the form of a circular spiral, or in any other convenient way. In the winding or in its cover, in Figures 3 and 4, we can scale the shape ofPDF Image | IMPLOSION by Viktor Schauberger
