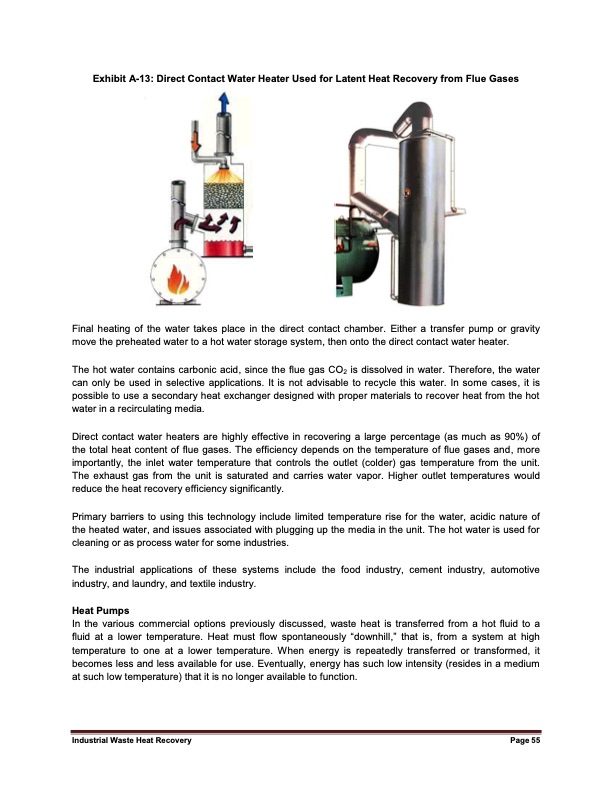

Exhibit A-13: Direct Contact Water Heater Used for Latent Heat Recovery from Flue Gases Final heating of the water takes place in the direct contact chamber. Either a transfer pump or gravity move the preheated water to a hot water storage system, then onto the direct contact water heater. The hot water contains carbonic acid, since the flue gas CO2 is dissolved in water. Therefore, the water can only be used in selective applications. It is not advisable to recycle this water. In some cases, it is possible to use a secondary heat exchanger designed with proper materials to recover heat from the hot water in a recirculating media. Direct contact water heaters are highly effective in recovering a large percentage (as much as 90%) of the total heat content of flue gases. The efficiency depends on the temperature of flue gases and, more importantly, the inlet water temperature that controls the outlet (colder) gas temperature from the unit. The exhaust gas from the unit is saturated and carries water vapor. Higher outlet temperatures would reduce the heat recovery efficiency significantly. Primary barriers to using this technology include limited temperature rise for the water, acidic nature of the heated water, and issues associated with plugging up the media in the unit. The hot water is used for cleaning or as process water for some industries. The industrial applications of these systems include the food industry, cement industry, automotive industry, and laundry, and textile industry. Heat Pumps In the various commercial options previously discussed, waste heat is transferred from a hot fluid to a fluid at a lower temperature. Heat must flow spontaneously “downhill,” that is, from a system at high temperature to one at a lower temperature. When energy is repeatedly transferred or transformed, it becomes less and less available for use. Eventually, energy has such low intensity (resides in a medium at such low temperature) that it is no longer available to function. Industrial Waste Heat Recovery Page 55PDF Image | Industrial Waste Heat Recovery: Potential
