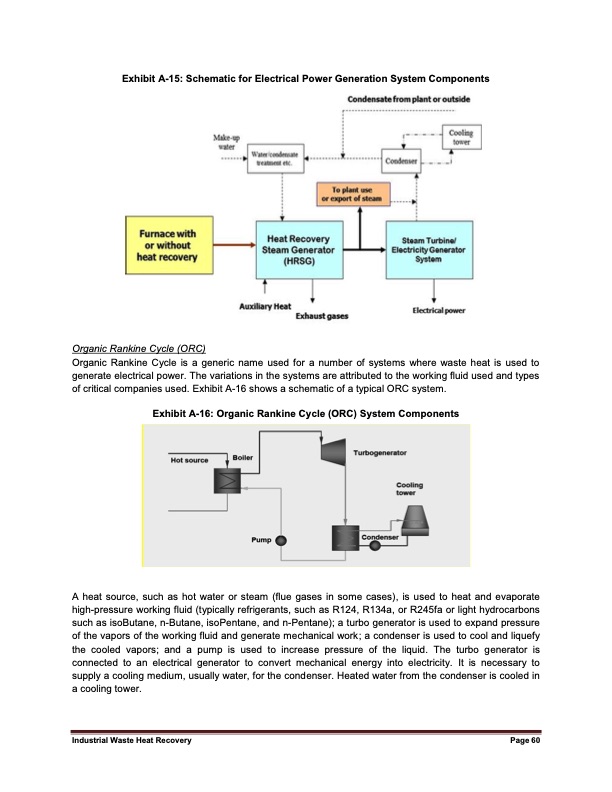

Exhibit A-15: Schematic for Electrical Power Generation System Components Organic Rankine Cycle (ORC) Organic Rankine Cycle is a generic name used for a number of systems where waste heat is used to generate electrical power. The variations in the systems are attributed to the working fluid used and types of critical companies used. Exhibit A-16 shows a schematic of a typical ORC system. Exhibit A-16: Organic Rankine Cycle (ORC) System Components A heat source, such as hot water or steam (flue gases in some cases), is used to heat and evaporate high-pressure working fluid (typically refrigerants, such as R124, R134a, or R245fa or light hydrocarbons such as isoButane, n-Butane, isoPentane, and n-Pentane); a turbo generator is used to expand pressure of the vapors of the working fluid and generate mechanical work; a condenser is used to cool and liquefy the cooled vapors; and a pump is used to increase pressure of the liquid. The turbo generator is connected to an electrical generator to convert mechanical energy into electricity. It is necessary to supply a cooling medium, usually water, for the condenser. Heated water from the condenser is cooled in a cooling tower. Industrial Waste Heat Recovery Page 60PDF Image | Industrial Waste Heat Recovery: Potential
