PDF Publication Title:
Text from PDF Page: 038

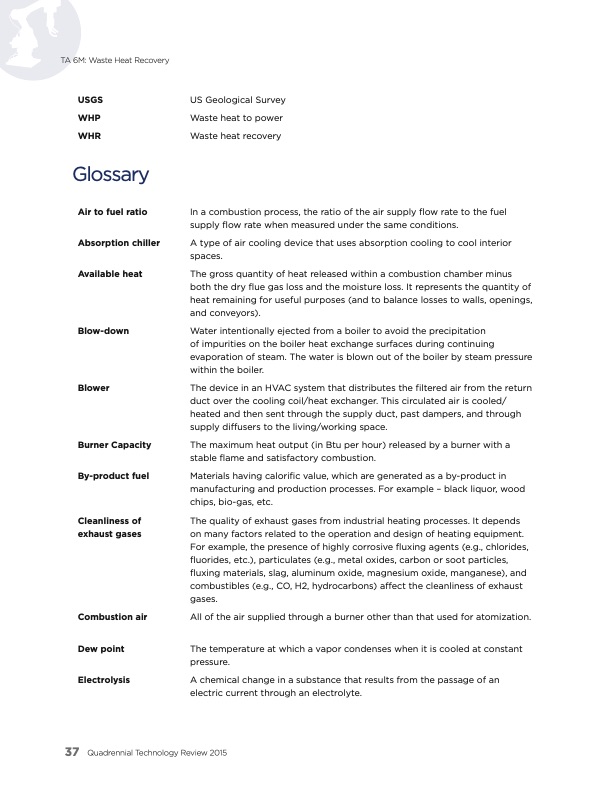

TA 6M: Waste Heat Recovery USGS WHP WHR Glossary Air to fuel ratio Absorption chiller Available heat Blow-down Blower Burner Capacity By-product fuel Cleanliness of exhaust gases Combustion air Dew point Electrolysis US Geological Survey Waste heat to power Waste heat recovery In a combustion process, the ratio of the air supply flow rate to the fuel supply flow rate when measured under the same conditions. A type of air cooling device that uses absorption cooling to cool interior spaces. The gross quantity of heat released within a combustion chamber minus both the dry flue gas loss and the moisture loss. It represents the quantity of heat remaining for useful purposes (and to balance losses to walls, openings, and conveyors). Water intentionally ejected from a boiler to avoid the precipitation of impurities on the boiler heat exchange surfaces during continuing evaporation of steam. The water is blown out of the boiler by steam pressure within the boiler. The device in an HVAC system that distributes the filtered air from the return duct over the cooling coil/heat exchanger. This circulated air is cooled/ heated and then sent through the supply duct, past dampers, and through supply diffusers to the living/working space. The maximum heat output (in Btu per hour) released by a burner with a stable flame and satisfactory combustion. Materials having calorific value, which are generated as a by-product in manufacturing and production processes. For example – black liquor, wood chips, bio-gas, etc. The quality of exhaust gases from industrial heating processes. It depends on many factors related to the operation and design of heating equipment. For example, the presence of highly corrosive fluxing agents (e.g., chlorides, fluorides, etc.), particulates (e.g., metal oxides, carbon or soot particles, fluxing materials, slag, aluminum oxide, magnesium oxide, manganese), and combustibles (e.g., CO, H2, hydrocarbons) affect the cleanliness of exhaust gases. All of the air supplied through a burner other than that used for atomization. The temperature at which a vapor condenses when it is cooled at constant pressure. A chemical change in a substance that results from the passage of an electric current through an electrolyte. 37 QuadrennialTechnologyReview2015PDF Image | Innovating Clean Energy Technologies in Advanced Manufacturing
