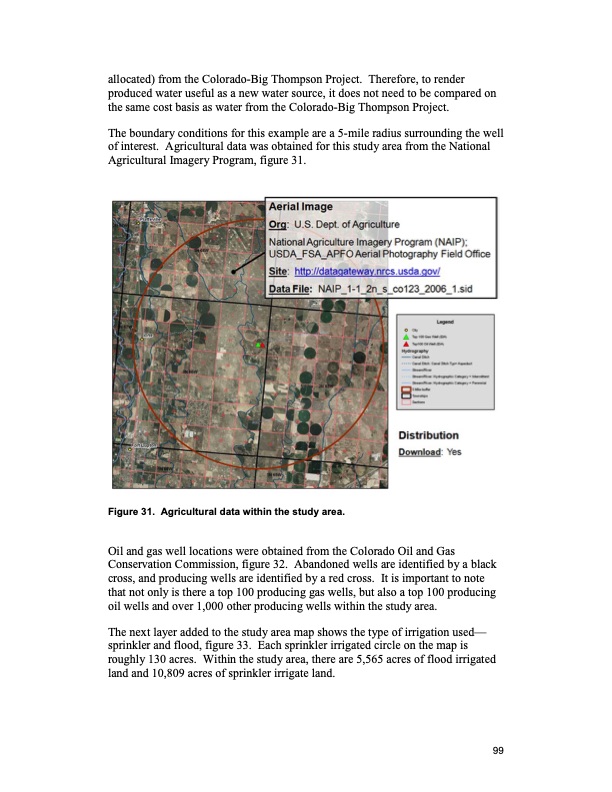

allocated) from the Colorado-Big Thompson Project. Therefore, to render produced water useful as a new water source, it does not need to be compared on the same cost basis as water from the Colorado-Big Thompson Project. The boundary conditions for this example are a 5-mile radius surrounding the well of interest. Agricultural data was obtained for this study area from the National Agricultural Imagery Program, figure 31. Figure 31. Agricultural data within the study area. Oil and gas well locations were obtained from the Colorado Oil and Gas Conservation Commission, figure 32. Abandoned wells are identified by a black cross, and producing wells are identified by a red cross. It is important to note that not only is there a top 100 producing gas wells, but also a top 100 producing oil wells and over 1,000 other producing wells within the study area. The next layer added to the study area map shows the type of irrigation used— sprinkler and flood, figure 33. Each sprinkler irrigated circle on the map is roughly 130 acres. Within the study area, there are 5,565 acres of flood irrigated land and 10,809 acres of sprinkler irrigate land. 99PDF Image | Oil and Gas Produced Water Management
