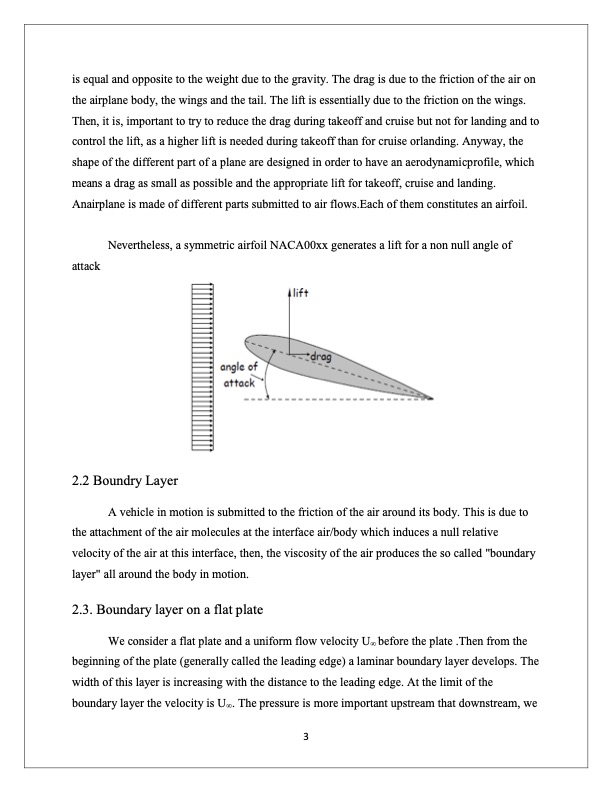

is equal and opposite to the weight due to the gravity. The drag is due to the friction of the air on the airplane body, the wings and the tail. The lift is essentially due to the friction on the wings. Then, it is, important to try to reduce the drag during takeoff and cruise but not for landing and to control the lift, as a higher lift is needed during takeoff than for cruise orlanding. Anyway, the shape of the different part of a plane are designed in order to have an aerodynamicprofile, which means a drag as small as possible and the appropriate lift for takeoff, cruise and landing. Anairplane is made of different parts submitted to air flows.Each of them constitutes an airfoil. Nevertheless, a symmetric airfoil NACA00xx generates a lift for a non null angle of attack 2.2 Boundry Layer A vehicle in motion is submitted to the friction of the air around its body. This is due to the attachment of the air molecules at the interface air/body which induces a null relative velocity of the air at this interface, then, the viscosity of the air produces the so called "boundary layer" all around the body in motion. 2.3. Boundary layer on a flat plate We consider a flat plate and a uniform flow velocity U∞ before the plate .Then from the beginning of the plate (generally called the leading edge) a laminar boundary layer develops. The width of this layer is increasing with the distance to the leading edge. At the limit of the boundary layer the velocity is U∞. The pressure is more important upstream that downstream, we 3PDF Image | PLASMA FUNCTIONALIZATION OF MULTI-SCALE STRUCTURES
