PDF Publication Title:
Text from PDF Page: 009

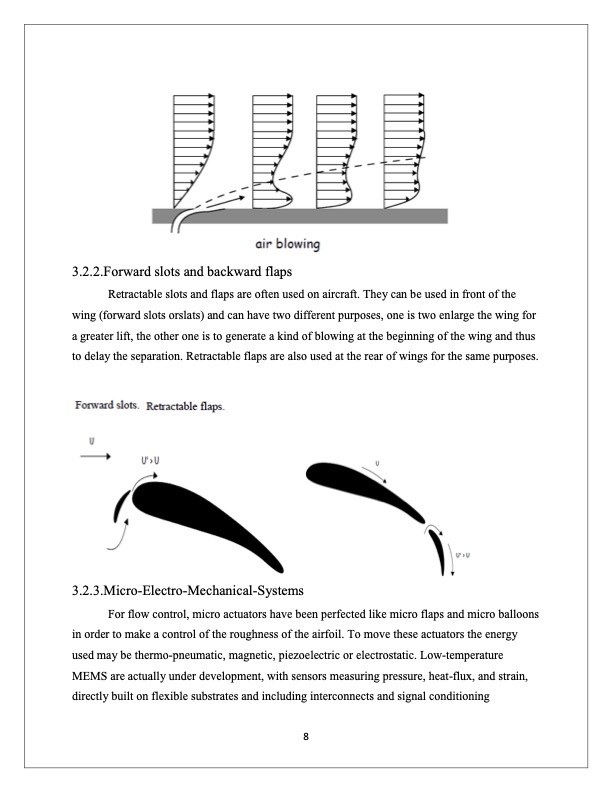

3.2.2.Forward slots and backward flaps Retractable slots and flaps are often used on aircraft. They can be used in front of the wing (forward slots orslats) and can have two different purposes, one is two enlarge the wing for a greater lift, the other one is to generate a kind of blowing at the beginning of the wing and thus to delay the separation. Retractable flaps are also used at the rear of wings for the same purposes. 3.2.3.Micro-Electro-Mechanical-Systems For flow control, micro actuators have been perfected like micro flaps and micro balloons in order to make a control of the roughness of the airfoil. To move these actuators the energy used may be thermo-pneumatic, magnetic, piezoelectric or electrostatic. Low-temperature MEMS are actually under development, with sensors measuring pressure, heat-flux, and strain, directly built on flexible substrates and including interconnects and signal conditioning 8PDF Image | PLASMA FUNCTIONALIZATION OF MULTI-SCALE STRUCTURES
PDF Search Title:
PLASMA FUNCTIONALIZATION OF MULTI-SCALE STRUCTURESOriginal File Name Searched:
plasmaactuators.pdfDIY PDF Search: Google It | Yahoo | Bing
