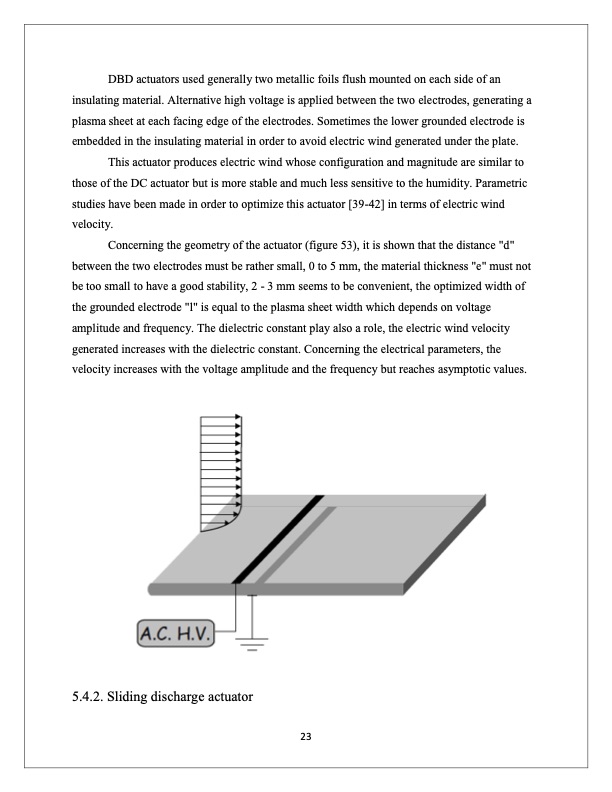

DBD actuators used generally two metallic foils flush mounted on each side of an insulating material. Alternative high voltage is applied between the two electrodes, generating a plasma sheet at each facing edge of the electrodes. Sometimes the lower grounded electrode is embedded in the insulating material in order to avoid electric wind generated under the plate. This actuator produces electric wind whose configuration and magnitude are similar to those of the DC actuator but is more stable and much less sensitive to the humidity. Parametric studies have been made in order to optimize this actuator [39-42] in terms of electric wind velocity. Concerning the geometry of the actuator (figure 53), it is shown that the distance "d" between the two electrodes must be rather small, 0 to 5 mm, the material thickness "e" must not be too small to have a good stability, 2 - 3 mm seems to be convenient, the optimized width of the grounded electrode "l" is equal to the plasma sheet width which depends on voltage amplitude and frequency. The dielectric constant play also a role, the electric wind velocity generated increases with the dielectric constant. Concerning the electrical parameters, the velocity increases with the voltage amplitude and the frequency but reaches asymptotic values. 5.4.2. Sliding discharge actuator 23PDF Image | PLASMA FUNCTIONALIZATION OF MULTI-SCALE STRUCTURES
