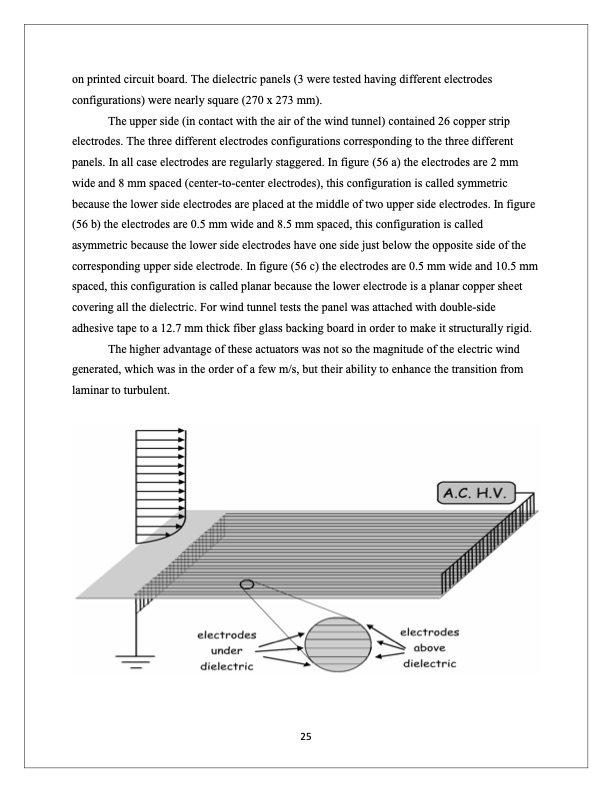

on printed circuit board. The dielectric panels (3 were tested having different electrodes configurations) were nearly square (270 x 273 mm). The upper side (in contact with the air of the wind tunnel) contained 26 copper strip electrodes. The three different electrodes configurations corresponding to the three different panels. In all case electrodes are regularly staggered. In figure (56 a) the electrodes are 2 mm wide and 8 mm spaced (center-to-center electrodes), this configuration is called symmetric because the lower side electrodes are placed at the middle of two upper side electrodes. In figure (56 b) the electrodes are 0.5 mm wide and 8.5 mm spaced, this configuration is called asymmetric because the lower side electrodes have one side just below the opposite side of the corresponding upper side electrode. In figure (56 c) the electrodes are 0.5 mm wide and 10.5 mm spaced, this configuration is called planar because the lower electrode is a planar copper sheet covering all the dielectric. For wind tunnel tests the panel was attached with double-side adhesive tape to a 12.7 mm thick fiber glass backing board in order to make it structurally rigid. The higher advantage of these actuators was not so the magnitude of the electric wind generated, which was in the order of a few m/s, but their ability to enhance the transition from laminar to turbulent. 25PDF Image | PLASMA FUNCTIONALIZATION OF MULTI-SCALE STRUCTURES
