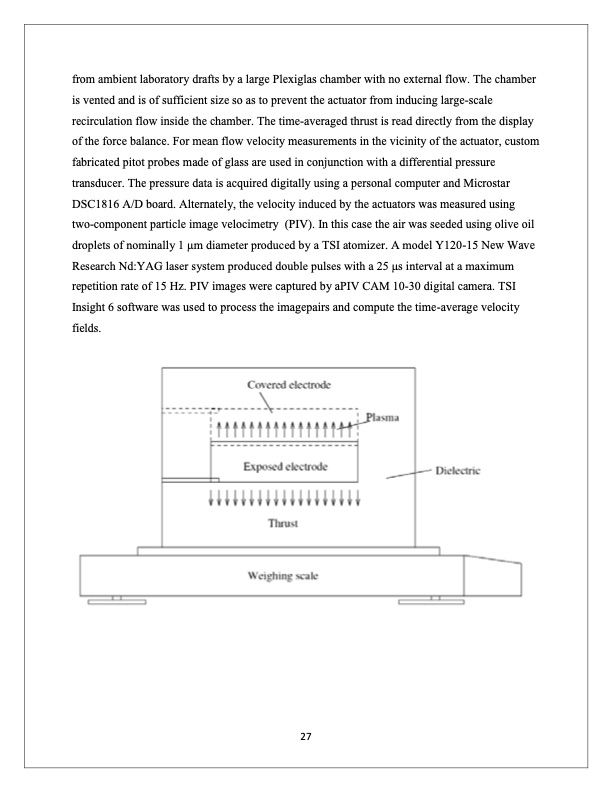

from ambient laboratory drafts by a large Plexiglas chamber with no external flow. The chamber is vented and is of sufficient size so as to prevent the actuator from inducing large-scale recirculation flow inside the chamber. The time-averaged thrust is read directly from the display of the force balance. For mean flow velocity measurements in the vicinity of the actuator, custom fabricated pitot probes made of glass are used in conjunction with a differential pressure transducer. The pressure data is acquired digitally using a personal computer and Microstar DSC1816 A/D board. Alternately, the velocity induced by the actuators was measured using two-component particle image velocimetry (PIV). In this case the air was seeded using olive oil droplets of nominally 1 μm diameter produced by a TSI atomizer. A model Y120-15 New Wave Research Nd:YAG laser system produced double pulses with a 25 μs interval at a maximum repetition rate of 15 Hz. PIV images were captured by aPIV CAM 10-30 digital camera. TSI Insight 6 software was used to process the imagepairs and compute the time-average velocity fields. 27PDF Image | PLASMA FUNCTIONALIZATION OF MULTI-SCALE STRUCTURES
