PDF Publication Title:
Text from PDF Page: 121

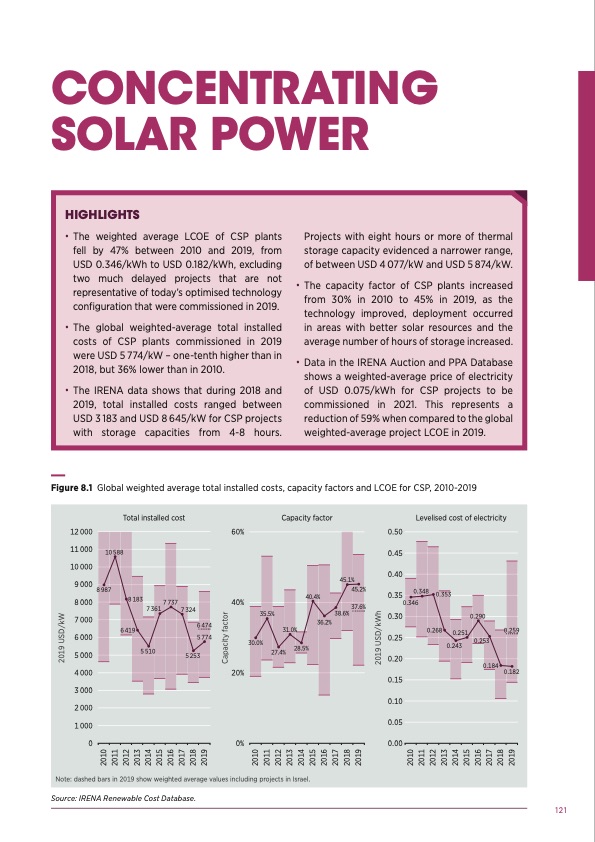

CONCENTRATING SOLAR POWER HIGHLIGHTS • The weighted average LCOE of CSP plants fell by 47% between 2010 and 2019, from USD 0.346/kWh to USD 0.182/kWh, excluding two much delayed projects that are not representative of today’s optimised technology configuration that were commissioned in 2019. • The global weighted-average total installed costs of CSP plants commissioned in 2019 were USD 5 774/kW – one-tenth higher than in 2018, but 36% lower than in 2010. • The IRENA data shows that during 2018 and 2019, total installed costs ranged between USD 3 183 and USD 8 645/kW for CSP projects with storage capacities from 4-8 hours. Projects with eight hours or more of thermal storage capacity evidenced a narrower range, of between USD 4 077/kW and USD 5 874/kW. • The capacity factor of CSP plants increased from 30% in 2010 to 45% in 2019, as the technology improved, deployment occurred in areas with better solar resources and the average number of hours of storage increased. • Data in the IRENA Auction and PPA Database shows a weighted-average price of electricity of USD 0.075/kWh for CSP projects to be commissioned in 2021. This represents a reduction of 59% when compared to the global weighted-average project LCOE in 2019. Figure 8.1 Global weighted average total installed costs, capacity factors and LCOE for CSP, 2010-2019 Total installed cost 12 000 60% Capacity factor Levelised cost of electricity 11 000 10 000 9 000 8000 7 000 6 000 5 000 4 000 3 000 2 000 1 000 0 10 588 8 987 0.50 0.45 0.40 45.1% 45.2% 0.35 8183 7737 40% 40.4% 36.2% 0.348 0.353 37.6% 0.346 61 5 510 7 324 5 253 35.5% 30.0% 38.6% 0.30 0.25 0.20 0.15 0.10 0.05 0.00 73 0.290 0.251 0.253 0.18 6 419 6 474 5 774 31.0% 0.268 0.259 0 4 0.182 27.4% 28.5% .243 20% 0% Note: dashed bars in 2019 show weighted average values including projects in Israel. Source: IRENA Renewable Cost Database. 121 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2019 USD/kW Capacity factor 2019 USD/kWhPDF Image | RENEWABLE POWER GENERATION COSTS IN 2019
PDF Search Title:
RENEWABLE POWER GENERATION COSTS IN 2019Original File Name Searched:
IRENA_Power_Generation_Costs_2019.pdfDIY PDF Search: Google It | Yahoo | Bing
