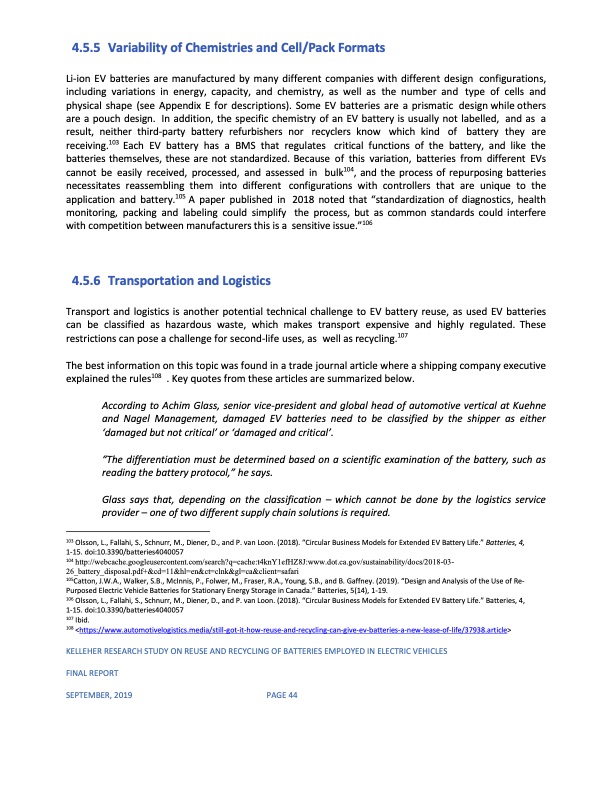

4.5.5 VariabilityofChemistriesandCell/PackFormats Li-ion EV batteries are manufactured by many different companies with different design configurations, including variations in energy, capacity, and chemistry, as well as the number and type of cells and physical shape (see Appendix E for descriptions). Some EV batteries are a prismatic design while others are a pouch design. In addition, the specific chemistry of an EV battery is usually not labelled, and as a result, neither third-party battery refurbishers nor recyclers know which kind of battery they are receiving.103 Each EV battery has a BMS that regulates critical functions of the battery, and like the batteries themselves, these are not standardized. Because of this variation, batteries from different EVs cannot be easily received, processed, and assessed in bulk104, and the process of repurposing batteries necessitates reassembling them into different configurations with controllers that are unique to the application and battery.105 A paper published in 2018 noted that “standardization of diagnostics, health monitoring, packing and labeling could simplify the process, but as common standards could interfere with competition between manufacturers this is a sensitive issue.”106 4.5.6 TransportationandLogistics Transport and logistics is another potential technical challenge to EV battery reuse, as used EV batteries can be classified as hazardous waste, which makes transport expensive and highly regulated. These restrictions can pose a challenge for second-life uses, as well as recycling.107 The best information on this topic was found in a trade journal article where a shipping company executive explained the rules108 . Key quotes from these articles are summarized below. According to Achim Glass, senior vice-president and global head of automotive vertical at Kuehne and Nagel Management, damaged EV batteries need to be classified by the shipper as either ‘damaged but not critical’ or ‘damaged and critical’. “The differentiation must be determined based on a scientific examination of the battery, such as reading the battery protocol,” he says. Glass says that, depending on the classification – which cannot be done by the logistics service provider – one of two different supply chain solutions is required. 103 Olsson, L., Fallahi, S., Schnurr, M., Diener, D., and P. van Loon. (2018). “Circular Business Models for Extended EV Battery Life.” Batteries, 4, 1-15. doi:10.3390/batteries4040057 104 http://webcache.googleusercontent.com/search?q=cache:t4knY1efHZ8J:www.dot.ca.gov/sustainability/docs/2018-03- 26_battery_disposal.pdf+&cd=11&hl=en&ct=clnk&gl=ca&client=safari 105Catton, J.W.A., Walker, S.B., McInnis, P., Folwer, M., Fraser, R.A., Young, S.B., and B. Gaffney. (2019). “Design and Analysis of the Use of Re- Purposed Electric Vehicle Batteries for Stationary Energy Storage in Canada.” Batteries, 5(14), 1-19. 106 Olsson, L., Fallahi, S., Schnurr, M., Diener, D., and P. van Loon. (2018). “Circular Business Models for Extended EV Battery Life.” Batteries, 4, 1-15. doi:10.3390/batteries4040057 107 Ibid. 108PDF Image | Reuse and Recycling of Batteries Employed in Electric Vehicles
