PDF Publication Title:
Text from PDF Page: 177

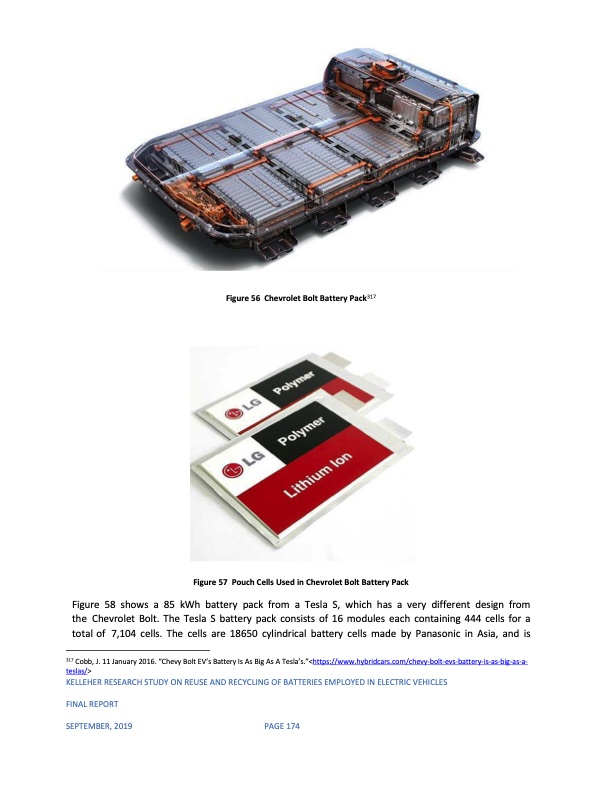

Figure 56 Chevrolet Bolt Battery Pack317 Figure 57 Pouch Cells Used in Chevrolet Bolt Battery Pack Figure 58 shows a 85 kWh battery pack from a Tesla S, which has a very different design from the Chevrolet Bolt. The Tesla S battery pack consists of 16 modules each containing 444 cells for a total of 7,104 cells. The cells are 18650 cylindrical battery cells made by Panasonic in Asia, and is 317 Cobb, J. 11 January 2016. “Chevy Bolt EV’s Battery Is As Big As A Tesla’s.”PDF Image | Reuse and Recycling of Batteries Employed in Electric Vehicles
PDF Search Title:
Reuse and Recycling of Batteries Employed in Electric VehiclesOriginal File Name Searched:
EV-Battery-Reuse-Recycling-18Dec2019.pdfDIY PDF Search: Google It | Yahoo | Bing
