Text from PDF Page: 007

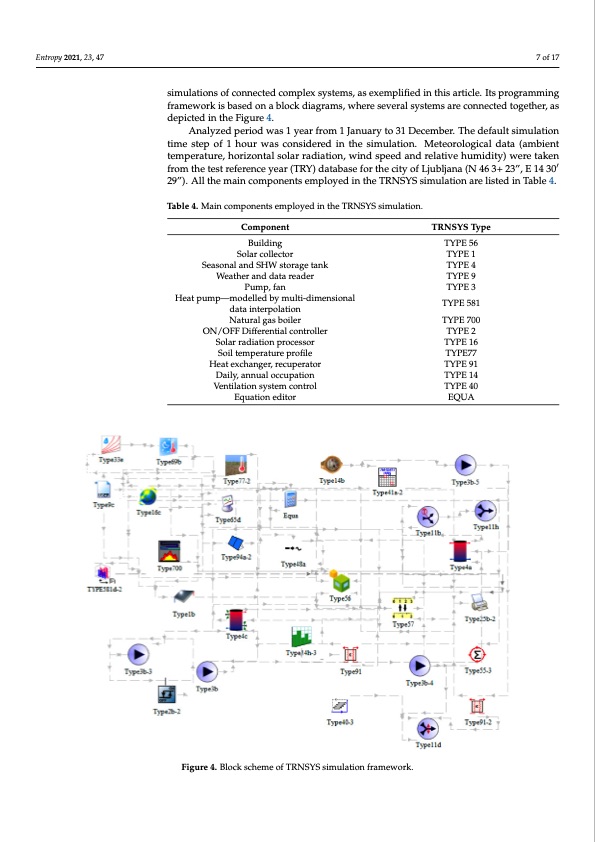

Entropy 2021, 23, 47 7 of 17 simulations of connected complex systems, as exemplified in this article. Its programming framework is based on a block diagrams, where several systems are connected together, as depicted in the Figure 4. Analyzed period was 1 year from 1 January to 31 December. The default simulation time step of 1 hour was considered in the simulation. Meteorological data (ambient temperature, horizontal solar radiation, wind speed and relative humidity) were taken from the test reference year (TRY) database for the city of Ljubljana (N 46 3+ 23”, E 14 30′ 29”). All the main components employed in the TRNSYS simulation are listed in Table 4. Table 4. Main components employed in the TRNSYS simulation. Component Building Solar collector Seasonal and SHW storage tank Weather and data reader Pump, fan Heat pump—modelled by multi-dimensional data interpolation Natural gas boiler ON/OFF Differential controller Solar radiation processor Soil temperature profile Heat exchanger, recuperator Daily, annual occupation Ventilation system control Equation editor TRNSYS Type TYPE 56 TYPE 1 TYPE 4 TYPE 9 TYPE 3 TYPE 581 TYPE 700 TYPE 2 TYPE 16 TYPE77 TYPE 91 TYPE 14 TYPE 40 EQUA Figure 4. Block scheme of TRNSYS simulation framework.PDF Image | Solar Assisted Heat Pump with Seasonal Heat Storage
