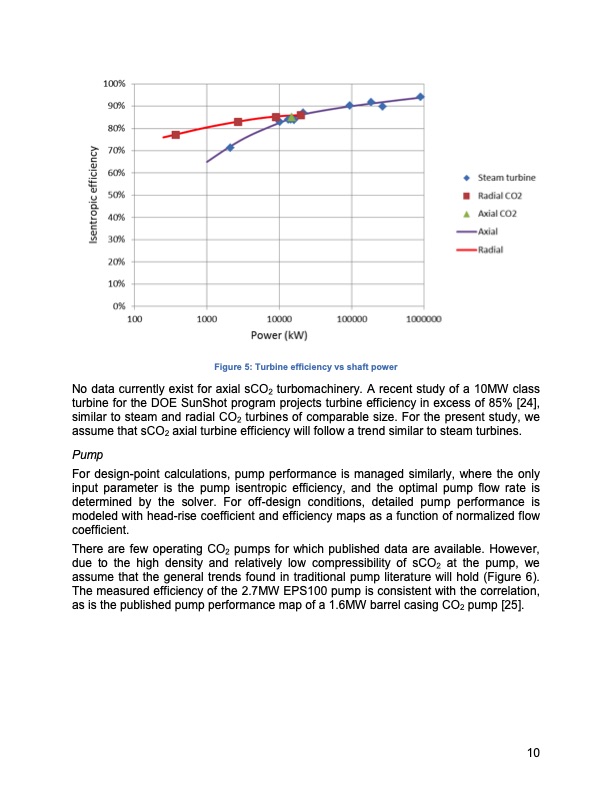

Figure 5: Turbine efficiency vs shaft power No data currently exist for axial sCO2 turbomachinery. A recent study of a 10MW class turbine for the DOE SunShot program projects turbine efficiency in excess of 85% [24], similar to steam and radial CO2 turbines of comparable size. For the present study, we assume that sCO2 axial turbine efficiency will follow a trend similar to steam turbines. Pump For design-point calculations, pump performance is managed similarly, where the only input parameter is the pump isentropic efficiency, and the optimal pump flow rate is determined by the solver. For off-design conditions, detailed pump performance is modeled with head-rise coefficient and efficiency maps as a function of normalized flow coefficient. There are few operating CO2 pumps for which published data are available. However, due to the high density and relatively low compressibility of sCO2 at the pump, we assume that the general trends found in traditional pump literature will hold (Figure 6). The measured efficiency of the 2.7MW EPS100 pump is consistent with the correlation, as is the published pump performance map of a 1.6MW barrel casing CO2 pump [25]. 10PDF Image | SUPERCRITICAL CO2 CYCLES FOR GAS TURBINE COMBINED CYCLE
