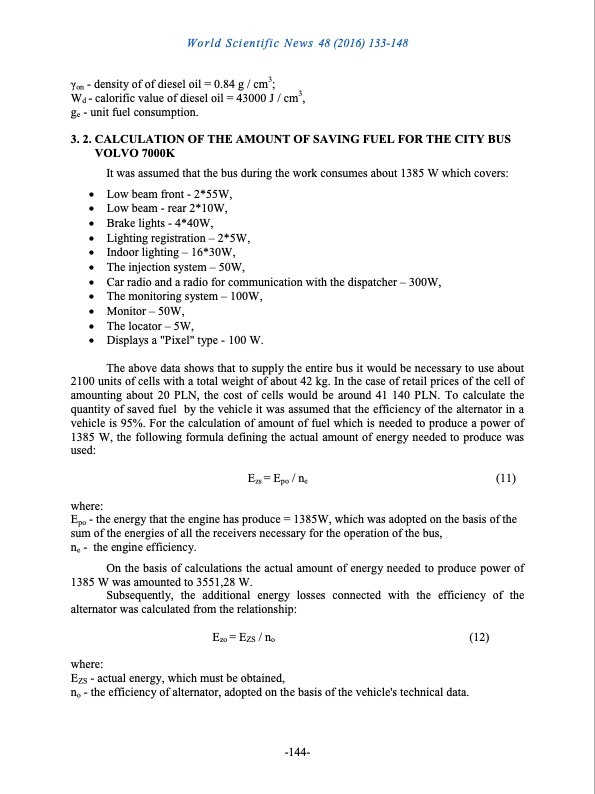

World Scientific News 48 (2016) 133-148 γon - density of of diesel oil = 0.84 g / cm3; 3 Wd - calorific value of diesel oil = 43000 J / cm , ge - unit fuel consumption. 3. 2. CALCULATION OF THE AMOUNT OF SAVING FUEL FOR THE CITY BUS VOLVO 7000K It was assumed that the bus during the work consumes about 1385 W which covers: Low beam front - 2*55W, Low beam - rear 2*10W, Brake lights - 4*40W, Lighting registration – 2*5W, Indoor lighting – 16*30W, The injection system – 50W, Car radio and a radio for communication with the dispatcher – 300W, The monitoring system – 100W, Monitor – 50W, The locator – 5W, Displays a "Pixel" type - 100 W. The above data shows that to supply the entire bus it would be necessary to use about 2100 units of cells with a total weight of about 42 kg. In the case of retail prices of the cell of amounting about 20 PLN, the cost of cells would be around 41 140 PLN. To calculate the quantity of saved fuel by the vehicle it was assumed that the efficiency of the alternator in a vehicle is 95%. For the calculation of amount of fuel which is needed to produce a power of 1385 W, the following formula defining the actual amount of energy needed to produce was used: Ezs = Epo / ne (11) where: Epo - the energy that the engine has produce = 1385W, which was adopted on the basis of the sum of the energies of all the receivers necessary for the operation of the bus, ne - the engine efficiency. On the basis of calculations the actual amount of energy needed to produce power of 1385 W was amounted to 3551,28 W. Subsequently, the additional energy losses connected with the efficiency of the alternator was calculated from the relationship: Ezo = EZS / no (12) where: EZS - actual energy, which must be obtained, no - the efficiency of alternator, adopted on the basis of the vehicle's technical data. -144-PDF Image | The energy harvesting from waste heat
