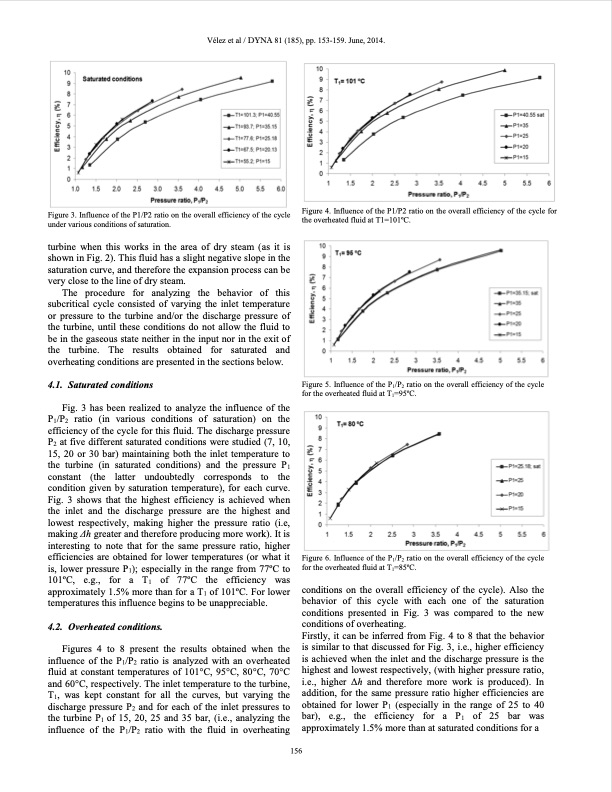

Figure 3. Influence of the P1/P2 ratio on the overall efficiency of the cycle under various conditions of saturation. turbine when this works in the area of dry steam (as it is shown in Fig. 2). This fluid has a slight negative slope in the saturation curve, and therefore the expansion process can be very close to the line of dry steam. The procedure for analyzing the behavior of this subcritical cycle consisted of varying the inlet temperature or pressure to the turbine and/or the discharge pressure of the turbine, until these conditions do not allow the fluid to be in the gaseous state neither in the input nor in the exit of the turbine. The results obtained for saturated and overheating conditions are presented in the sections below. 4.1. Saturated conditions Fig. 3 has been realized to analyze the influence of the P1/P2 ratio (in various conditions of saturation) on the efficiency of the cycle for this fluid. The discharge pressure P2 at five different saturated conditions were studied (7, 10, 15, 20 or 30 bar) maintaining both the inlet temperature to the turbine (in saturated conditions) and the pressure P1 constant (the latter undoubtedly corresponds to the condition given by saturation temperature), for each curve. Fig. 3 shows that the highest efficiency is achieved when the inlet and the discharge pressure are the highest and lowest respectively, making higher the pressure ratio (i.e, making Δh greater and therefore producing more work). It is interesting to note that for the same pressure ratio, higher efficiencies are obtained for lower temperatures (or what it is, lower pressure P1); especially in the range from 77oC to 101oC, e.g., for a T1 of 77oC the efficiency was approximately 1.5% more than for a T1 of 101oC. For lower temperatures this influence begins to be unappreciable. 4.2. Overheated conditions. Figures 4 to 8 present the results obtained when the influence of the P1/P2 ratio is analyzed with an overheated fluid at constant temperatures of 101°C, 95°C, 80°C, 70°C and 60°C, respectively. The inlet temperature to the turbine, T1, was kept constant for all the curves, but varying the discharge pressure P2 and for each of the inlet pressures to the turbine P1 of 15, 20, 25 and 35 bar, (i.e., analyzing the influence of the P1/P2 ratio with the fluid in overheating Figure 4. Influence of the P1/P2 ratio on the overall efficiency of the cycle for the overheated fluid at T1=101oC. Figure 5. Influence of the P1/P2 ratio on the overall efficiency of the cycle for the overheated fluid at T1=95oC. Figure 6. Influence of the P1/P2 ratio on the overall efficiency of the cycle for the overheated fluid at T1=85oC. conditions on the overall efficiency of the cycle). Also the behavior of this cycle with each one of the saturation conditions presented in Fig. 3 was compared to the new conditions of overheating. Firstly, it can be inferred from Fig. 4 to 8 that the behavior is similar to that discussed for Fig. 3, i.e., higher efficiency is achieved when the inlet and the discharge pressure is the highest and lowest respectively, (with higher pressure ratio, i.e., higher Δh and therefore more work is produced). In addition, for the same pressure ratio higher efficiencies are obtained for lower P1 (especially in the range of 25 to 40 bar), e.g., the efficiency for a P1 of 25 bar was approximately 1.5% more than at saturated conditions for a Vélez et al / DYNA 81 (185), pp. 153-159. June, 2014. 156PDF Image | Thermodynamic analysis of R134a in an Organic Rankine Cycle for power generation from low temperature sources Analisis termodinamico del R134a en un Ciclo Rankine Organico para la generacionde energía a partir de fuentes de baja temperatura
