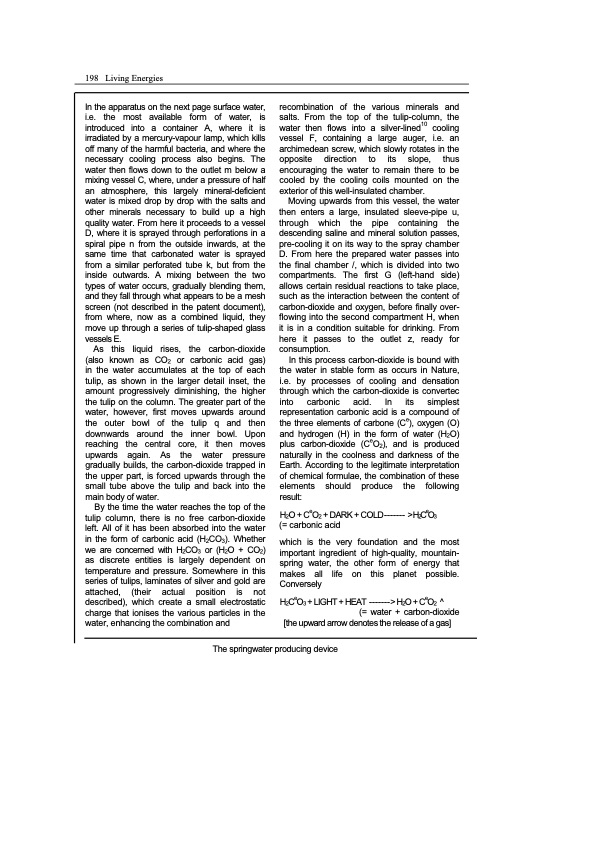

198 Living Energies In the apparatus on the next page surface water, i.e. the most available form of water, is introduced into a container A, where it is irradiated by a mercury-vapour lamp, which kills off many of the harmful bacteria, and where the necessary cooling process also begins. The water then flows down to the outlet m below a mixing vessel C, where, under a pressure of half an atmosphere, this largely mineral-deficient water is mixed drop by drop with the salts and other minerals necessary to build up a high quality water. From here it proceeds to a vessel D, where it is sprayed through perforations in a spiral pipe n from the outside inwards, at the same time that carbonated water is sprayed from a similar perforated tube k, but from the inside outwards. A mixing between the two types of water occurs, gradually blending them, and they fall through what appears to be a mesh screen (not described in the patent document), from where, now as a combined liquid, they move up through a series of tulip-shaped glass vessels E. As this liquid rises, the carbon-dioxide (also known as CO2 or carbonic acid gas) in the water accumulates at the top of each tulip, as shown in the larger detail inset, the amount progressively diminishing, the higher the tulip on the column. The greater part of the water, however, first moves upwards around the outer bowl of the tulip q and then downwards around the inner bowl. Upon reaching the central core, it then moves upwards again. As the water pressure gradually builds, the carbon-dioxide trapped in the upper part, is forced upwards through the small tube above the tulip and back into the main body of water. By the time the water reaches the top of the tulip column, there is no free carbon-dioxide left. All of it has been absorbed into the water in the form of carbonic acid (H2CO3). Whether we are concerned with H2CO3 or (H2O + CO2) as discrete entities is largely dependent on temperature and pressure. Somewhere in this series of tulips, laminates of silver and gold are attached, (their actual position is not described), which create a small electrostatic charge that ionises the various particles in the water, enhancing the combination and recombination of the various minerals and salts. From the top of the tulip-column, the water then flows into a silver-lined10 cooling vessel F, containing a large auger, i.e. an archimedean screw, which slowly rotates in the opposite direction to its slope, thus encouraging the water to remain there to be cooled by the cooling coils mounted on the exterior of this well-insulated chamber. Moving upwards from this vessel, the water then enters a large, insulated sleeve-pipe u, through which the pipe containing the descending saline and mineral solution passes, pre-cooling it on its way to the spray chamber D. From here the prepared water passes into the final chamber /, which is divided into two compartments. The first G (left-hand side) allows certain residual reactions to take place, such as the interaction between the content of carbon-dioxide and oxygen, before finally over- flowing into the second compartment H, when it is in a condition suitable for drinking. From here it passes to the outlet z, ready for consumption. In this process carbon-dioxide is bound with the water in stable form as occurs in Nature, i.e. by processes of cooling and densation through which the carbon-dioxide is convertec into carbonic acid. In its simplest representation carbonic acid is a compound of the three elements of carbone (Ce), oxygen (O) and hydrogen (H) in the form of water (H2O) plus carbon-dioxide (CeO2), and is produced naturally in the coolness and darkness of the Earth. According to the legitimate interpretation of chemical formulae, the combination of these elements should produce the following result: H2O + CeO2 + DARK + COLD------- >H2CeO3 (= carbonic acid which is the very foundation and the most important ingredient of high-quality, mountain- spring water, the other form of energy that makes all life on this planet possible. Conversely H2CeO3+LIGHT+HEAT------->H2O+CeO2 ^ (= water + carbon-dioxide [the upward arrow denotes the release of a gas] The springwater producing devicePDF Image | Viktor Schauberger Work Explained
