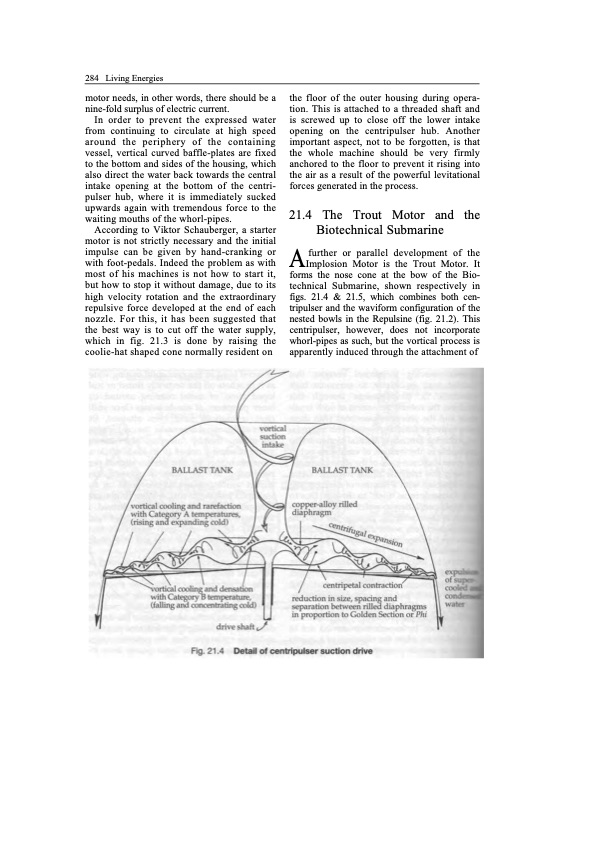

284 Living Energies motor needs, in other words, there should be a nine-fold surplus of electric current. In order to prevent the expressed water from continuing to circulate at high speed around the periphery of the containing vessel, vertical curved baffle-plates are fixed to the bottom and sides of the housing, which also direct the water back towards the central intake opening at the bottom of the centri- pulser hub, where it is immediately sucked upwards again with tremendous force to the waiting mouths of the whorl-pipes. According to Viktor Schauberger, a starter motor is not strictly necessary and the initial impulse can be given by hand-cranking or with foot-pedals. Indeed the problem as with most of his machines is not how to start it, but how to stop it without damage, due to its high velocity rotation and the extraordinary repulsive force developed at the end of each nozzle. For this, it has been suggested that the best way is to cut off the water supply, which in fig. 21.3 is done by raising the coolie-hat shaped cone normally resident on the floor of the outer housing during opera- tion. This is attached to a threaded shaft and is screwed up to close off the lower intake opening on the centripulser hub. Another important aspect, not to be forgotten, is that the whole machine should be very firmly anchored to the floor to prevent it rising into the air as a result of the powerful levitational forces generated in the process. 21.4 The Trout Motor and the Biotechnical Submarine Afurther or parallel development of the Implosion Motor is the Trout Motor. It forms the nose cone at the bow of the Bio- technical Submarine, shown respectively in figs. 21.4 & 21.5, which combines both cen- tripulser and the waviform configuration of the nested bowls in the Repulsine (fig. 21.2). This centripulser, however, does not incorporate whorl-pipes as such, but the vortical process is apparently induced through the attachment ofPDF Image | Viktor Schauberger Work Explained
