Text from PDF Page: 005

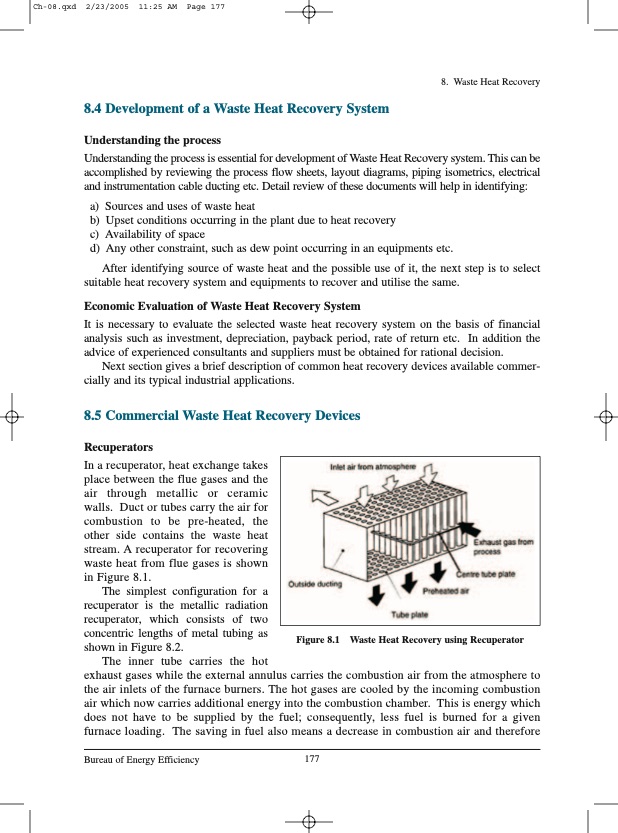

8.4 Development of a Waste Heat Recovery System Understanding the process Understanding the process is essential for development of Waste Heat Recovery system. This can be accomplished by reviewing the process flow sheets, layout diagrams, piping isometrics, electrical and instrumentation cable ducting etc. Detail review of these documents will help in identifying: a) Sources and uses of waste heat b) Upset conditions occurring in the plant due to heat recovery c) Availability of space d) Any other constraint, such as dew point occurring in an equipments etc. After identifying source of waste heat and the possible use of it, the next step is to select suitable heat recovery system and equipments to recover and utilise the same. Economic Evaluation of Waste Heat Recovery System It is necessary to evaluate the selected waste heat recovery system on the basis of financial analysis such as investment, depreciation, payback period, rate of return etc. In addition the advice of experienced consultants and suppliers must be obtained for rational decision. Next section gives a brief description of common heat recovery devices available commer- cially and its typical industrial applications. 8.5 Commercial Waste Heat Recovery Devices Recuperators In a recuperator, heat exchange takes place between the flue gases and the air through metallic or ceramic walls. Duct or tubes carry the air for combustion to be pre-heated, the other side contains the waste heat stream. A recuperator for recovering waste heat from flue gases is shown in Figure 8.1. The simplest configuration for a recuperator is the metallic radiation recuperator, which consists of two concentric lengths of metal tubing as shown in Figure 8.2. Figure 8.1 Waste Heat Recovery using Recuperator 8. Waste Heat Recovery The inner tube carries the hot exhaust gases while the external annulus carries the combustion air from the atmosphere to the air inlets of the furnace burners. The hot gases are cooled by the incoming combustion air which now carries additional energy into the combustion chamber. This is energy which does not have to be supplied by the fuel; consequently, less fuel is burned for a given furnace loading. The saving in fuel also means a decrease in combustion air and therefore Bureau of Energy Efficiency 177PDF Image | WASTE HEAT RECOVERY Classification
