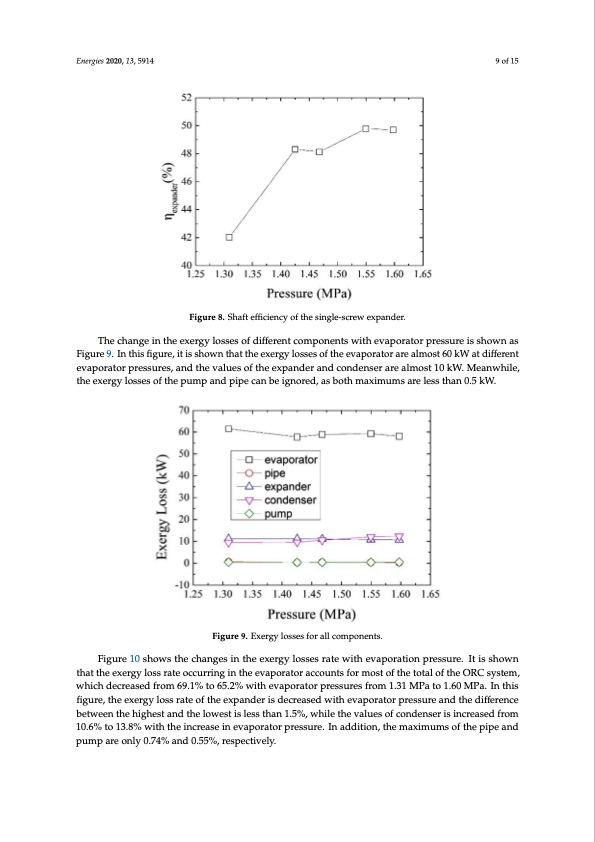

Energies 2020, 13, 5914 9 of 15 Figure 8. Shaft efficiency of the single-screw expander. The change in the exergy losses of different components with evaporator pressure is shown as Figure 9. In this figure, it is shown that the exergy losses of the evaporator are almost 60 kW at different evaporator pressures, and the values of the expander and condenser are almost 10 kW. Meanwhile, the exergy losses of the pump and pipe can be ignored, as both maximums are less than 0.5 kW. Figure 9. Exergy losses for all components. Figure 10 shows the changes in the exergy losses rate with evaporation pressure. It is shown that the exergy loss rate occurring in the evaporator accounts for most of the total of the ORC system, which decreased from 69.1% to 65.2% with evaporator pressures from 1.31 MPa to 1.60 MPa. In this figure, the exergy loss rate of the expander is decreased with evaporator pressure and the difference between the highest and the lowest is less than 1.5%, while the values of condenser is increased from 10.6% to 13.8% with the increase in evaporator pressure. In addition, the maximums of the pipe and pump are only 0.74% and 0.55%, respectively.PDF Image | Waste Heat Recovery from Diesel Engine Exhaust ORC
