PDF Publication Title:
Text from PDF Page: 012

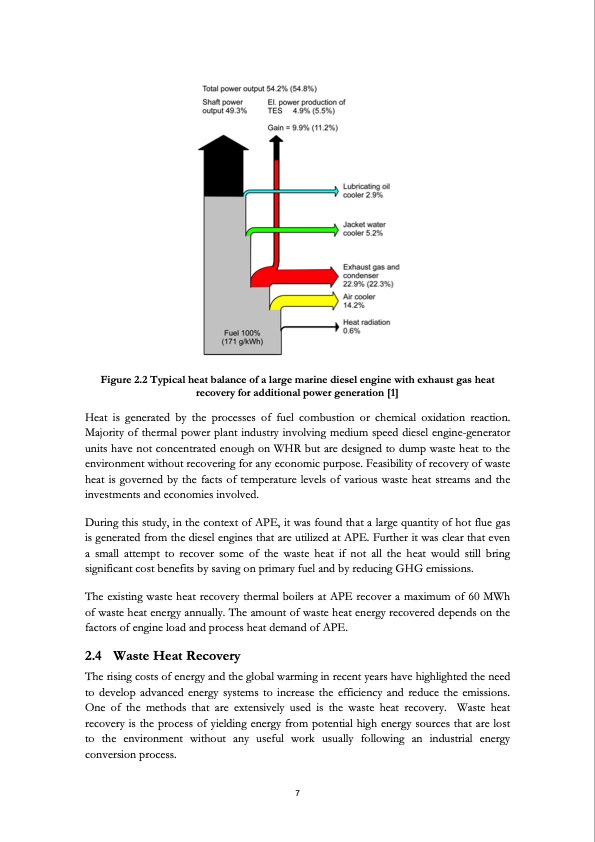

Figure 2.2 Typical heat balance of a large marine diesel engine with exhaust gas heat recovery for additional power generation [1] Heat is generated by the processes of fuel combustion or chemical oxidation reaction. Majority of thermal power plant industry involving medium speed diesel engine-generator units have not concentrated enough on WHR but are designed to dump waste heat to the environment without recovering for any economic purpose. Feasibility of recovery of waste heat is governed by the facts of temperature levels of various waste heat streams and the investments and economies involved. During this study, in the context of APE, it was found that a large quantity of hot flue gas is generated from the diesel engines that are utilized at APE. Further it was clear that even a small attempt to recover some of the waste heat if not all the heat would still bring significant cost benefits by saving on primary fuel and by reducing GHG emissions. The existing waste heat recovery thermal boilers at APE recover a maximum of 60 MWh of waste heat energy annually. The amount of waste heat energy recovered depends on the factors of engine load and process heat demand of APE. 2.4 Waste Heat Recovery The rising costs of energy and the global warming in recent years have highlighted the need to develop advanced energy systems to increase the efficiency and reduce the emissions. One of the methods that are extensively used is the waste heat recovery. Waste heat recovery is the process of yielding energy from potential high energy sources that are lost to the environment without any useful work usually following an industrial energy conversion process. 7PDF Image | waste heat recovery steam power system for ACE Embilipitiya
PDF Search Title:
waste heat recovery steam power system for ACE EmbilipitiyaOriginal File Name Searched:
waste-heat-recovery-steam-power-ace.pdfDIY PDF Search: Google It | Yahoo | Bing
