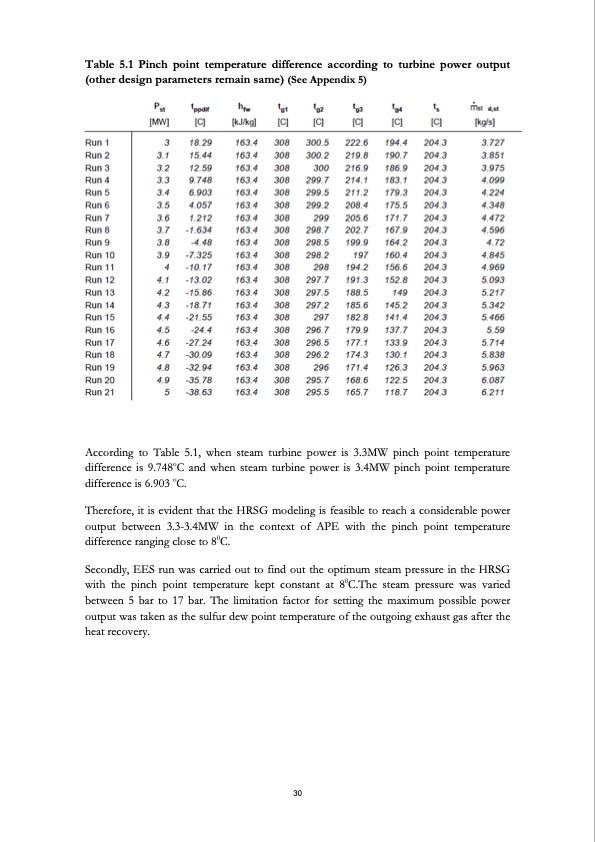

Table 5.1 Pinch point temperature difference according to turbine power output (other design parameters remain same) (See Appendix 5) According to Table 5.1, when steam turbine power is 3.3MW pinch point temperature difference is 9.748oC and when steam turbine power is 3.4MW pinch point temperature difference is 6.903 oC. Therefore, it is evident that the HRSG modeling is feasible to reach a considerable power output between 3.3-3.4MW in the context of APE with the pinch point temperature difference ranging close to 80C. Secondly, EES run was carried out to find out the optimum steam pressure in the HRSG with the pinch point temperature kept constant at 80C.The steam pressure was varied between 5 bar to 17 bar. The limitation factor for setting the maximum possible power output was taken as the sulfur dew point temperature of the outgoing exhaust gas after the heat recovery. 30PDF Image | waste heat recovery steam power system for ACE Embilipitiya
