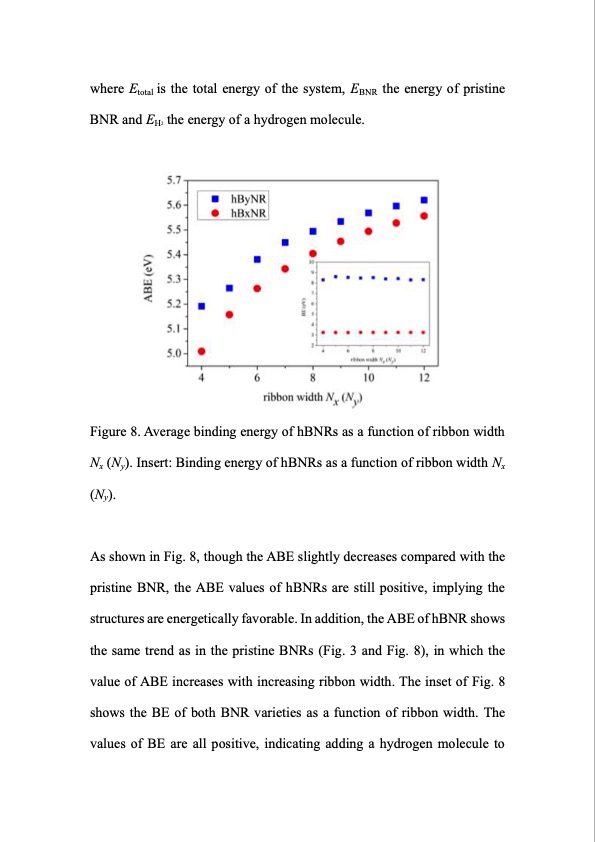

where Etotal is the total energy of the system, EBNR the energy of pristine BNR and EH2 the energy of a hydrogen molecule. Figure 8. Average binding energy of hBNRs as a function of ribbon width Nx (Ny). Insert: Binding energy of hBNRs as a function of ribbon width Nx (Ny). As shown in Fig. 8, though the ABE slightly decreases compared with the pristine BNR, the ABE values of hBNRs are still positive, implying the structures are energetically favorable. In addition, the ABE of hBNR shows the same trend as in the pristine BNRs (Fig. 3 and Fig. 8), in which the value of ABE increases with increasing ribbon width. The inset of Fig. 8 shows the BE of both BNR varieties as a function of ribbon width. The values of BE are all positive, indicating adding a hydrogen molecule toPDF Image | Magnetic Properties of Borophene Nanoribbons
