Text from PDF Page: 022

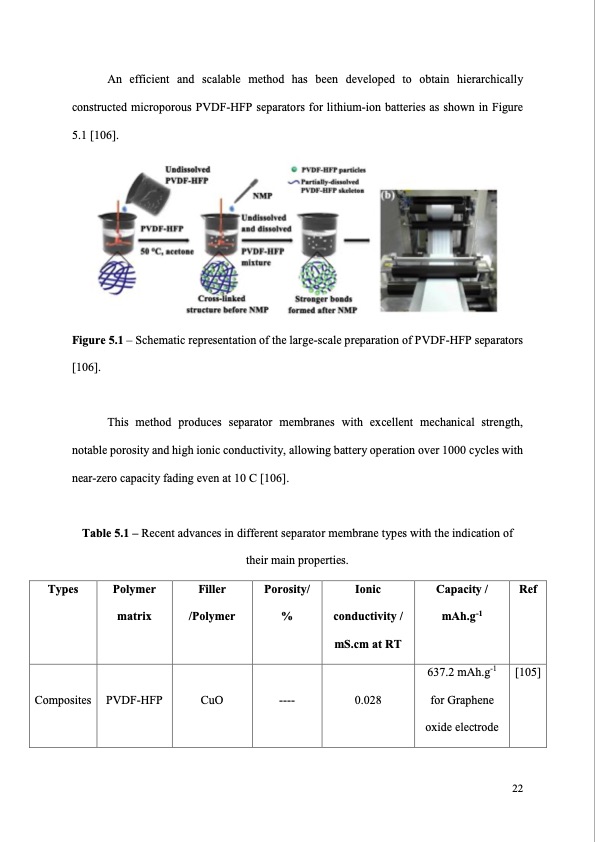

An efficient and scalable method has been developed to obtain hierarchically constructed microporous PVDF-HFP separators for lithium-ion batteries as shown in Figure 5.1 [106]. Figure 5.1 – Schematic representation of the large-scale preparation of PVDF-HFP separators [106]. This method produces separator membranes with excellent mechanical strength, notable porosity and high ionic conductivity, allowing battery operation over 1000 cycles with near-zero capacity fading even at 10 C [106]. Table 5.1 – Recent advances in different separator membrane types with the indication of their main properties. Types Polymer matrix Filler /Polymer Porosity/ % Ionic conductivity / mS.cm at RT Capacity / mAh.g-1 Ref Composites PVDF-HFP CuO ---- 0.028 637.2 mAh.g-1 for Graphene oxide electrode [105] 22PDF Image | Synthetic Polymer-based Membrane for Lithium Ion
