Text from PDF Page: 030

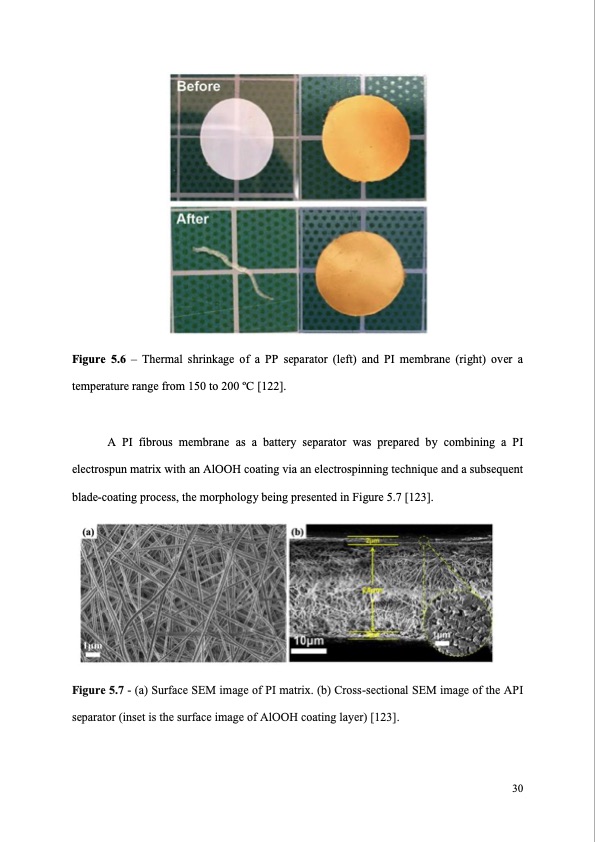

Figure 5.6 – Thermal shrinkage of a PP separator (left) and PI membrane (right) over a temperature range from 150 to 200 oC [122]. A PI fibrous membrane as a battery separator was prepared by combining a PI electrospun matrix with an AlOOH coating via an electrospinning technique and a subsequent blade-coating process, the morphology being presented in Figure 5.7 [123]. Figure 5.7 - (a) Surface SEM image of PI matrix. (b) Cross-sectional SEM image of the API separator (inset is the surface image of AlOOH coating layer) [123]. 30PDF Image | Synthetic Polymer-based Membrane for Lithium Ion
